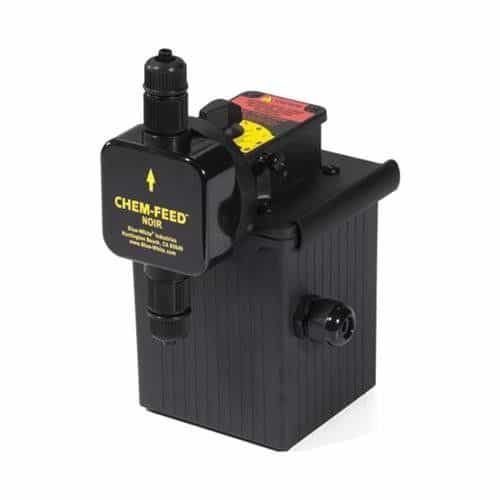

Blue-White C15N432X040V70 CHEM-FEED C-1500 Metering Pump - 68.4 GPD, 24V

Brand:
Mfr. Model #:
C15N432X040V70
KR Part #:
BW15N432X24V
Weight:
7.96 lbs
Availability:
1
Low Stock Warning
MSRP
$691.85
Now Only!
$411.80

This diaphragm metering pump is used to monitor and control fluid flow in water and chemical injection applications. 68.4 GPD (5.9 oz/minute), 24 volt.




Technical Specifications

RPM: 125
Max PSI: 125
Voltage AC: 24
Max Temperature: 130 degrees F
Stroke: .055 inch
Max GPM: .05

Product Description

Diaphragm Chemical Feed Pump - 68.4 GPD

Ideal for dispensing a precise and wide variety of solutions across applications including water treatment and conditioning; soap, wax, and detergent injection; fertilizer and nutrient injection in agricultural use, and more. Easy to adjust feed rate thanks to accurate mechanical stroke adjustment. Can be wall or shelf mounted, enclosure rated for indoor and outdoor use. All ball bearing, permanently lubricated gear motor for smooth, quiet, powerful operation.

Dimensions: 9-1/2" H x 4-1/2" W x 5-3/4"D

Features:

  • Anti-siphon check valve and foot valve strainer
  • Injection molded PVDF large diaphragm carwash pump head
  • Viton elastomers
  • PTFE coated EP diaphragm
  • Output adjustment of 5-100% of stroke length
  • Nema Type 3R enclosure

Specifications:

  • Maximum Output: 68.4 GPD (2.85 GPH, .0475 GPM, 5.9 oz/minute)
  • Max PSI: 125
  • Max Fluid Temperature: 130°F
  • Ambient Temperature Range: 14°F to 110°F
  • Voltage: 24 VAC
  • RPM: 125
