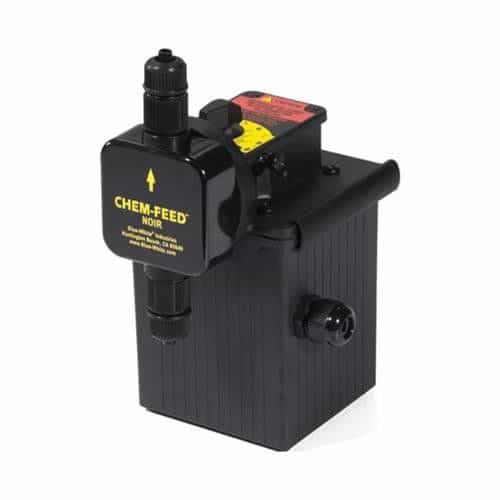

Blue-White C15N302X066V70 CHEM-FEED Metering Pump - 16.3 GPD, 115V

Mfr. Model #:
KR Part #:
7.96 lbs
Out of Stock - Pre-Order Now
Now Only!
Durable, adjustable diaphragm pump made with chemical-resistant materials. 16.3 GPD, 115V.

Technical Specifications

Voltage AC: 115
Stroke: 1.4 millimeter
Max PSI: 125
RPM: 60
Max Temperature: 130 degrees F
Max GPM: .011

Product Description

115V CHEM-FEED Metering Pump

The Blue White C15N302X066V70 metering pump is part of the C-1500N Series designed for effective chemical dispensing. This CHEM-FEED diaphragm pump features a quick-adjusting, high-accuracy mechanical stroke length control.
This efficient metered pump is adjustable and delivers chemicals at a consistent rate; perfect for environments like car washes that require constant daily chemical dispensing.
  • 16.3 GPD
  • 1.4 oz/minute
  • 115 volt
  • 60 Hz
  • 125 PSI maximum pressure
  • 60 RPM maximum speed
  • .055" cam stroke length
  • Standard output and electrical control options
  • Injection-molded PVDF pump head
  • Small diaphragm car wash pump head style
  • Small PTFE (Teflon)/EP diaphragm style
  • Viton elastomers
  • PVDF/Polypropylene C-340 foot valve
  • 10 foot water suction lift
  • 130° Fahrenheit
  • 1,000 Centipoise maximum viscosity
  • Continuous duty cycle
  • NEMA type 3R (IP23)
  • Economic and versatile
  • Permanently lubricated ball bearings and gear motor for smooth, quiet, powerful operation
  • Stroke adjustment from 5-100% permits accurate small injections at a high rate per minute
  • Outdoor rated enclosure
  • Durable, chemical-resistant Val ox (PBT) thermoplastic
  • PTFE coated EP diaphragm
  • Double-ball inlet and outlet cartridge type ceramic check valves
  • No metal springs are used
  • Car wash
  • Soap, wax and detergent injection
  • Water treatment and conditioning
  • Wastewater treatment
  • Biocide feed
  • Rural water systems
  • Cooling tower & boiler treatment
  • Fertilizer and nutrient injection
  • Pool chlorination & PH control
