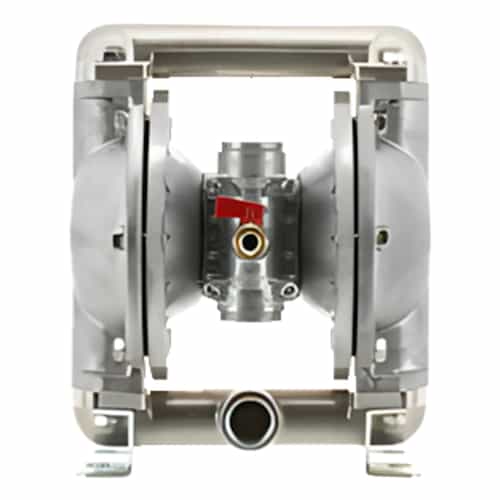

G25 Series AODD PTFE Pump

The Yamada G25AT11 (Model #854997) differentiates itself from other pumps in the G25 Series due to its PTFE elastomeric option. The result is a maximum liquid operating temperature of 212 Fahrenheit along with a minimum operating temperature of 32 Fahrenheit. Overall, these pumps use a 1" female NPT port and a 3/8" air inlet. It's designed with chemical resistance to better withstand car wash premixes and other high-chemical liquids. Other key specifcations include a 100 PSI maximum and a maximum GPM of 40.1.

Yamda has been developing pumps for over 100 years so they know quite a bit about engineering. A few features that stand out for pumps in their G25 Series include a non-lubricated/maintenance free air distribution system, stall free/ice free operation, fewer wearing parts, quick tear downs or rebuilds for easy repair, 20% less air consumption than many competitors, and finally, piping interchangeability with many leading brands. So whether you find yourself using chemical liquids in the car wash industry or any of the other industries listed, this G25 series AODD pump will be a savvy choice!

G25 Series Pump Specifications:

• Max GPM: 40.1
• Max PSI: 100
• Max Fluid Temperature: 180 Fahrenheit
• Min Fluid Temperature: 32 Fahrenheit
• Port Size: 1" Female NPT
• Air Inlet: 3/8" Female NPT
• Body Material: Aluminum
• Santoprene seal

G25 Series Pump Features:

• Piping interchangeability with leading brands
• 20% less air consumption than many competitors
• Non-lubricated and maintenance free air distribution system
• Stall Free/ Ice Free Operation

G25 Series Pump Application Categories:

• Aerospace
• Automotive
• Car Wash Facilities
• Chemical Delivery/Transfer
• Gas & Petroleum
• Mining
• Paints and Dyes
• Printing and Ink
• Stone/Clay/Glass
• Washing/Cleaning Systems
• Water Treatment
