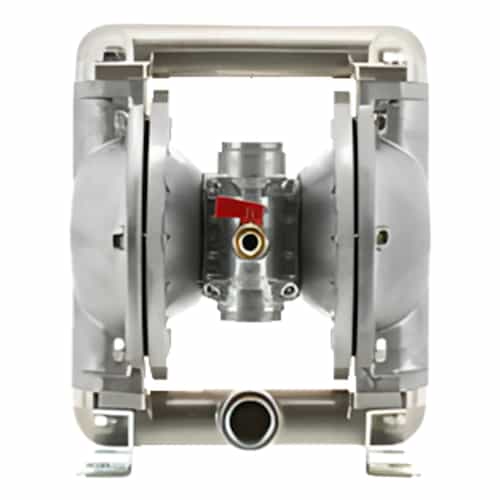

G25 Series Santoprene AODD Pump

When transferring car wash chemicals and premixes, it's important to have a pump which is durable, chemical-resistant, and delivers high performance. The Yamada G25AS11 (Model #855001) pump exhibits these key traits along with many others. From the G25 Series, it's a titanium air operated double diaphragm pump with worthwhile specifications such as a 40.1 GPM rating, 100 PSI rating, and a liquid temperature range of 32 Fahrenheit to 180 Fahrenheit.

The G25AS11, like all G25 Series pumps, uses a 1" female inlet port size along with a 3/8" air inlet size. Where it differs from other pumps in the series is the elastomeric option. While other versions of this pump use Buna N, Viton, or Hytrel seals, this pump uses a Santoprene seal.

Certain traits and features allow G25 Series AODD pumps to stand out. A few notables include a non-lubricated/maintenance free air distribution system, 20% less air consumption than many competitors, stall free/ice free operation, piping interchangeability with leading brands, and lastly, a quick teardown/rebuild design to ease the difficulty of repairs.

G25 Series Pump Specifications:

• Max GPM: 40.1
• Max PSI: 100
• Max Fluid Temperature: 180 Fahrenheit
• Min Fluid Temperature: 32 Fahrenheit
• Port Size: 1" Female NPT
• Air Inlet: 3/8" Female NPT
• Body Material: Aluminum
• Santoprene seal

G25 Series Pump Features:

• Piping interchangeability with leading brands
• 20% less air consumption than many competitors
• Non-lubricated and maintenance free air distribution system
• Stall Free/ Ice Free Operation

G25 Series Pump Application Categories:

• Aerospace
• Automotive
• Car Wash Facilities
• Chemical Delivery/Transfer
• Gas & Petroleum
• Mining
• Paints and Dyes
• Printing and Ink
• Stone/Clay/Glass
• Washing/Cleaning Systems
• Water Treatment
