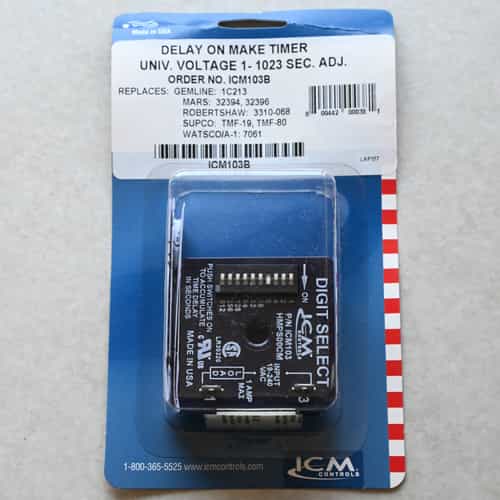

Delay On Make Timer OPEN-BOX DEAL
Mfr. Model #:
ICM103
KR Part #:
ICM103-BT
Weight:
0.25 lbs
A delay on make timer for compressor staging and stagger starting multiple motors. Protects against power surges. It accepts 18/240 VAC electrical connections.
NOTE: This is a Kleen-Rite Open-Box Deal item that was returned, refurbished, or pulled from regular stock. Original packaging may be missing, and the product may have minor cosmetic damage that does not affect the performance. Very limited quantities and price is only valid as long as open-box inventory lasts. All sales final - no returns.
Product Description
18/240 VAC Delay On Make Timer
The ICM delay on make timer ICM103 is used for compressor staging and stagger starting multiple motors and other equipment. It helps to reduce power surges that can damage your equipment. When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes. It is compatible with 18/230 VAC electrical currents.
Please note this is a Kleen-Rite Open-Box Deal item that was returned or pulled from regular stock. Original packaging may be missing, and the product may have minor cosmetic damage that does not affect the performance. All sales final - no returns.
Specifications
- Manufacturer: ICM
- Product Number: ICM103
- Item: Delay On Make Timer
- Voltage: 18/240 VAC
- Amperage: 1
- Amp Inrush: 10
- Holding Current: 40 mA
- Voltage Drop: 2.5v @1amp
- Size: 2" x 2"
Replaces
- TMF-19
- TMF-80
- 1C213
- TD3001A
- 32396
- 3310-068
- 32394
- 7061
Features
- Highly precise digital timing
- Switch-settable time delays
- Ideal for ice machine applications
- Universal voltage operation
- Repeat accuracy .5% over voltage and temperature range
