1760 RPM - Washdown Motor

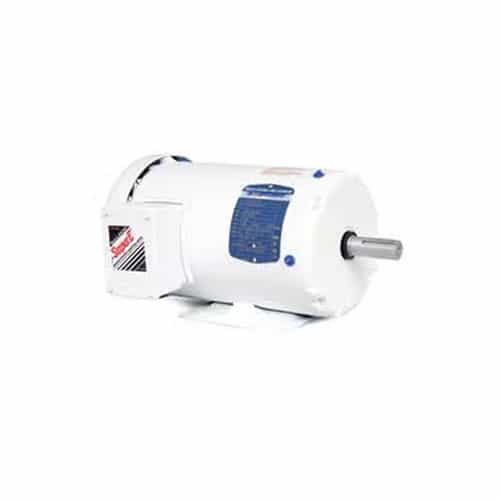

The Baldor EWDM3558T is a motor engineered to endure applications that experience frequent wash downs during operation making it perfect for car washes. Designed with a totally-enclosed fan-cooled enclosure and a 143T frame. It tolerates a maximum speed of 1760 RPM.

Please note this is a Kleen-Rite Open-Box Deal item that was returned or pulled from regular stock. Original packaging may be missing, and the product may have minor cosmetic damage that does not affect the performance. All sales final - no returns.

EWDM3558T Specifications:

• GTIN: 781568457542
• Enclosure: TEFC
• Frame: 143T
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: 2.000 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
• XP Class and Group: None
• XP Division: Not Applicable
• Agency Approvals:
• NEMA_PREMIUM UR
• NEMA PREMIUM CSA EEV
• Ambient Temperature: 40 °C
• Auxiliary Box: No Auxiliary Box
• Auxiliary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage:
• 5.600 A @ 230.0 V
• 5.800 A @ 208.0 V
• 2.800 A @ 460.0 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 86.5 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 2.8 a
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Ready
• KVA Code: K
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: No Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 18 AWG
• Motor Type: 3528M
• Mounting Arrangement: F1
• Number of Poles: 4
• Overall Length: 13.29 IN
• Power Factor: 77
• Product Family: Wash Down
• Pulley End Bearing Type: Sealed Bearing
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• Service Factor: 1.15
• Shaft Diameter: 0.875 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 1760 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
