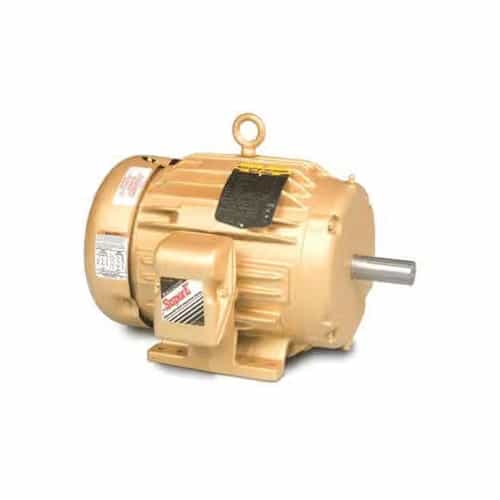

Baldor EM2333T Electric 230/460V 3-Phase Motor OPEN BOX DEAL - 15HP, 1765 RPM, TEFC Enclosure
Brand:
Mfr. Model #:
EM2333T
KR Part #:
MBEM2333T-BT
Weight:
270.00 lbs
Availability:
1
NEMA electric motor designed for efficient operation under continuous or very frequent use. 0944M type motor with an iron 254T frame and an TEFC enclosure. 230/460 VAC, 15 HP, 1765 RPM.
NOTE: This is a Kleen-Rite Open-Box Deal item that was returned, refurbished, or pulled from regular stock. Original packaging may be missing, and the product may have minor cosmetic damage that does not affect the performance. Very limited quantities and price is only valid as long as open-box inventory lasts. All sales final - no returns.
Freight Only
Product Description
Continuous-Duty General Purpose Motor
The Baldor EM2333T is a tough, industrial-grade electric motor for applications where the motor is operating continuously or frequently. Designed to conserve energy over extended time periods of use. This 230/460 volt AC motor has an TEFC enclosure and a steel 254T frame. Produces up to 15 horsepower and a maximum speed of 1765 RPM.
Please note this is a Kleen-Rite Open-Box Deal item that was returned or pulled from regular stock. Original packaging may be missing, and the product may have minor cosmetic damage that does not affect the performance. All sales final - no returns.
Specifications:
- Maximum Horsepower: 15
- Enclosure: TEFC
- Frame: Iron 254T
- Voltage: 230/460AC
- Frequency: 60 Hz
- Phase: 3
- Duty Rating: Continuous
- Speed: 1765 RPM
- Overall Length: 23.28"
- Motor Standards: NEMA
- High Voltage Full Load Amps: 18.1
- Motor Type: 0944M
- Mounting Arrangement: F1
- Shaft Diameter: 1.625"
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No shaft grounding
- Shaft Rotation: Reversible
- Pulley End Bearing Type: Ball
- Pulley Face Code: Standard
- Pulley Shaft Indicator: Standard
- Service Factor: 1.15
- Number of Poles: 4
- Power Factor: 83
- Starting Method: Direct on line
- Synchronous Speed @ Frequency: 1800 RPM @ 60 Hz
- Voltage @ Frequency: 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
- Certifications: UR, CSA EEV, CSA
- Ambient Temperature: 104° Fahrenheit
- Base Indicator: Rigid
- Bearing Grease Type: Polyrex EM (-20F +300F)
- Current @ Voltage: 18.100 A @ 460.0 V, 36.200 A @ 230.0 V, 38.000 A @ 208.0 V
- Design Code: A
- Efficiency at 100% Load: 92.4%
- Front Face Code: Standard
- Insulation Class: F
- Inverter Code: Inverter ready
- KVA Code: H
- Lifting Lugs: Standard
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Exit: Ko Box
- Motor Lead Termination: Flying leads
- Motor Lead Quantity/Wire Size: 9 @ 12 AWG
