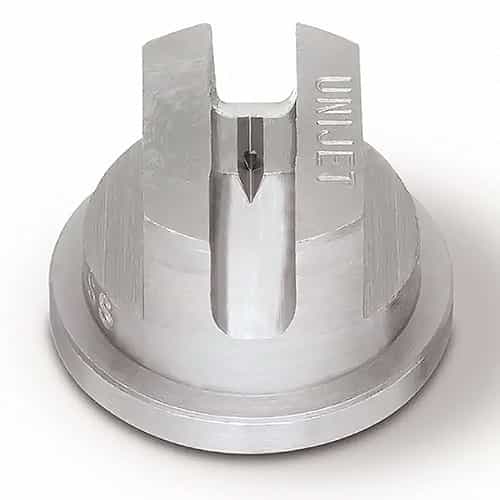

Spraying Systems TPU730116-SS Stainless Steel Flat Fan UniJet Nozzle Tip - Rated Pressure 40 PSI, Spray Angle 73 Degree, Flow Rate 0.12 GPM

Brand:
Mfr. Model #:
TPU730116-SS
KR Part #:
SNTP730116SS
Weight:
0.02 lbs
Out of Stock - Pre-Order Now
MSRP
$16.79
Now Only!
$7.14

This Unijet tip has a 73-degree spray angle at the rate pressure of 40 PSI and produces a flow rate of 0.12 GPM. Its recessed orifice is protected from damage to extend its life. 303 stainless steel makes this nozzle resistant to corrosion.




Product Description

73 Degree - UniJet Spray Tip

Spraying Systems spray tip TPU730116-SS is designed for Unijet nozzles. It features a flat fan spray pattern created by the V-shaped cut of the orifice to deliver outstanding uniform results. The nozzle is designed with a recessed orifice to prevent damage. Corrosion-resistant 303 stainless steel construction greatly improves the longevity of this nozzle. At its rated pressure of 40 PSI, the nozzle has a 73-degree spray angle and produces a flow rate of 0.12 GPM.

Specifications:

  • Configuration
    • Capacity Size: 0116
    • Inlet Connection Type: Quick-connect
    • Liquid Flow Rate at Rated Pressure: 0.12 gpm
    • Material Composition: 303 Stainless Steel
    • Model: TPU
    • Spray Angle at Rated Pressure: 73°
    • Tip Type: TPU
    • Product Type: Tip
  • Drop Sizes
    • Relative Drop Size Group: 100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
  • Performance
    • Spray Angle Range: 54 - 90°
    • Spray Angle: 54° @ 20 psi, 73° @ 40 psi, 85° @ 80 psi, 90° @ 200 psi
  • Product Category
    • Brand: UniJet®
    • Spray Angle Catalog Code: Standard
  • Standard Feature
    • Equivalent Orifice Diameter: 0.028 in
    • Liquid Flow Rate Range: 0.041 - 0.41 gpm
    • Liquid Pressure Range: 5 - 500 psi
    • Material Code: SS
    • Rated Pressure: 40 psi
    • Relative Drop Size Range: 100 - 5,000 µm
    • Spray Pattern: Flat Fan
