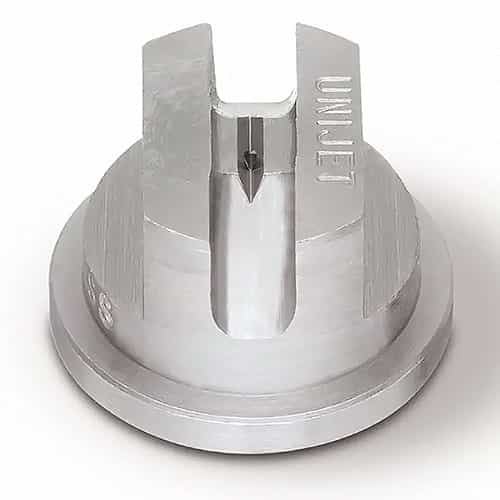

Spraying Systems TPU650017-SS Stainless Steel Flat Fan UniJet Nozzle Tip - Rated Pressure 40 PSI, Spray Angle 65 Degree, Flow Rate 0.017 GPM

Brand:
Mfr. Model #:
TPU650017-SS
KR Part #:
SNTP650017SS
Weight:
0.02 lbs
Out of Stock - Pre-Order Now
MSRP
$37.65
Now Only!
$16.02

This Unijet tip has a 65-degree spray angle at the rate pressure of 40 PSI and produces a flow rate of 0.017 GPM. Its recessed orifice is protected from damage to extend its life. 303 stainless steel makes this nozzle resistant to corrosion.




Product Description

65 Degree - UniJet Spray Tip

Spraying Systems spray tip TPU650017-SS is designed for Unijet nozzles. It features a flat fan spray pattern created by the V-shaped cut of the orifice to deliver outstanding uniform results. The nozzle is designed with a recessed orifice to prevent damage. Corrosion-resistant 303 stainless steel construction greatly improves the longevity of this nozzle. At its rated pressure of 40 PSI, the nozzle has a 65-degree spray angle and produces a flow rate of 0.017 GPM.

Specifications:

  • Configuration
    • Capacity Size: 0017
    • Inlet Connection Type: Quick-connect
    • Liquid Flow Rate at Rated Pressure: 0.017 gpm
    • Material Composition: 303 Stainless Steel
    • Model: TPU
    • Spray Angle at Rated Pressure: 65°
    • Tip Type: TPU
    • Product Type: Tip
  • Drop Sizes
    • Relative Drop Size Group: 100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
  • Performance
    • Spray Angle Range: 44 - 86°
    • Spray Angle: 44° @ 20 psi, 65° @ 40 psi, 77° @ 80 psi, 86° @ 200 psi
  • Product Category
    • Brand: UniJet®
    • Spray Angle Catalog Code: Standard
  • Standard Feature
    • Equivalent Orifice Diameter: 0.011 in
    • Liquid Flow Rate Range: 0.012 - 0.06 gpm
    • Liquid Pressure Range: 20 - 500 psi
    • Material Code: SS
    • Rated Pressure: 40 PSI
    • Relative Drop Size Range: 100 - 5,000 µm
    • Spray Pattern: Flat Fan
