Name: Arimitsu 510R-A Floating Plunger Pump w/ Baldor Motor - 7.5 GPM, 1200 PSI, Right Shaft, 28MM Hollow Shaft, 1800 RPM, 5HP, 3PH
Brand: Arimitsu
SKU: ARM510R-A

Brand:

Arimitsu

Mfr. Model #:

510R-A

KR Part #:

ARM510R-A

Weight:

21.00 lbs

MSRP

~~$3,781.81~~

Now Only!

$2,334.44

Manuals

Arimitsu Floating 5 Series Model 510 Data Sheet.pdf

Frequent Questions

The Arimitsu 510R-A plunger pump operates at a quiet noise level where minimal sound is desired. It includes a compatible Baldor motor. Arimitsu kept noise reduction in mind when engineering the design of the 510R floating plunger pump. Materials selected for parts in the Arimitsu 510R floating pump are chosen because they provide durability and long life to the machine.

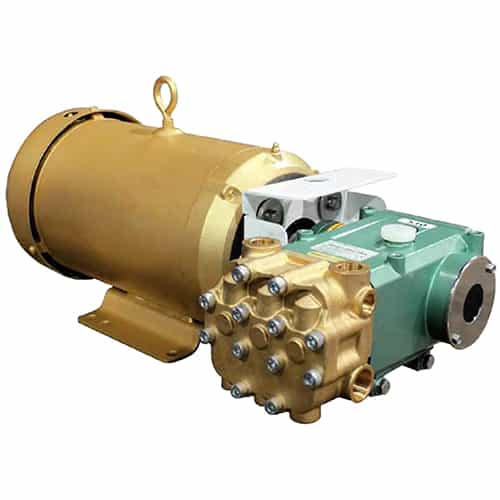

Note: The image shows a left-shaft pump. The product is a right-shaft pump.

More Info...

Technical Specifications

Max GPM: 7.5

Max PSI: 1200

Shaft Diameter: 28 millimeter

RPM: 1800

Outlet Port: 1/2 inch and 3/8 inch

Inlet Port: 3/4 inch

Max Temperature: 175 degrees F

Horsepower: 5

Phase: Three

Product Description

Floating Plunger Pump with Motor, Right Shaft

Arimitsu 510R-A floating plunger pump's crankshaft bearings are oversized to extend the life of the pump and provide quiet operation. It includes a 5HP, 3PH Baldor motor. The balanced flow crankcase and precision machined design ensure quiet operation. Smooth liquid flow is facilitated by triplex plungers inside the 510R. Liquid-cooled and features low drag seals to provide long life, and improved suction enabling this pump to run dry longer and operate with extreme efficiency. Repairs and maintenance do not require special tools.

SPECIFICATIONS:

Model: 510R-A
Max GPM: 7.5
Max PSI: 1200
RPM: 1800
Inlet Port: 3/4 inch
Max Temperature: 175 degrees F
Outlet Port: 1/2 inch and 3/8 inch
Shaft Location: Right (Note: Image shows left)
Shaft Size: 28mm

INCLUDED ACCESSORIES

Motor:
- Brand: Baldor
- Horsepower: 5HP
- Phase: 3PH

FEATURES

Unique mounting technology increases life and decreases noise (pat. pending)
Liquid-cooled, low drag seals provide long life, improved suction, higher efficiency and longer dry running without damage
Zero-clearance exclusionary seals protect crankcase
Balanced flow crankcase design and precision machining ensures uniform lubrication and quiet operation
Triplex pumps provide smooth liquid flow
Manifold is designed and machined to guarantee superior fluid flow

QUALITY

100% stainless steel valve assemblies deliver greater temperature and chemical handling abilities
Oversized crankshaft bearings for long life and quiet operation
Proprietary, proven seal blend maximizes life and increases maintenance intervals
Precision ground ceramic plungers utilize a proprietary material blend for long life and increased thermal shock resistance
Forged brass manifolds offer strength and corrosion resistance
