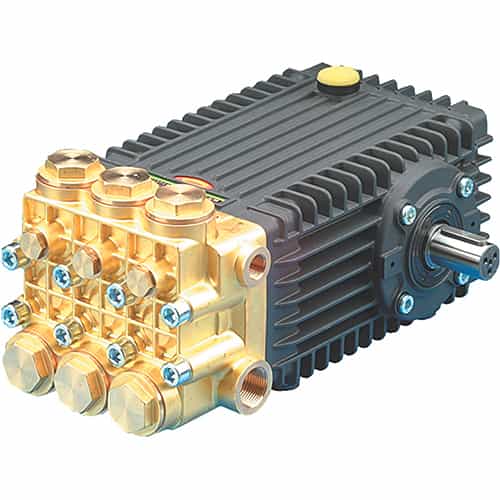

General Pump TSF2819 High Flow 66 Series, TSF Triplex Pump - 12.1 GPM, 2200 PSI, 1450 RPM, 18.2 EBHP
Brand:
Mfr. Model #:
TSF2819
KR Part #:
GPTSF2819
Weight:
40.70 lbs
A triplex plunger pump that delivers a high flow rate, up to a maximum of 12 GPM. It is designed with innovative features that increase the longevity of this pump and its performance. The pump is engineered to endure a maximum pressure of 2200 PSI.
Technical Specifications
Max GPM: 12.1
Max PSI: 2200
RPM: 1450
Horsepower: 18.2
Bore: 28 millimeter
Stroke: 19 millimeter
Crankcase Capacity: 33.8 ounce
Max Temperature: 165 degrees F
Shaft Diameter: 24 millimeter
Product Description
12.1 GPM - 66 Series, TSF Pump
General Pump TSF2819 is a 66 Series, TSF pump with a triplex design featuring new technology. An improved plunger design increases thermal shock resistance and innovative seals that last much longer than outdated designs. Plus, a new valve cap design delivers better hydrostatic performance. This pump produces a maximum flow rate of 12.1 GPM for applications requiring higher flow rates.
Specifications:
- Max Volume: 12.1 GPM
- Max Discharge Pressure: 2200 PSI
- Horsepower: 18.2 EBHP
- Max Pump Speed: 1450 RPM
- Max Inlet Pressure: 125 PSI
- Max Inlet Vacuum: 9 ft. water/7.9 in. Hg
- Plunger Bore: 28 mm
- Plunger Stroke: 19 mm
- Oil Capacity: 33.8 oz.
- Maximum Fluid Temperature: 165° F
- Inlet Port Thread: 3/4"-14 BSP-F
- Discharge Port Thread: 3/8"-19 BSP-F
- Shaft Diameter (in / mm): .945 in. / 24 mm
- Weight: 40.7 lbs / 18.5 kg
- Dimensions: 14.94" x 9.78" x 6.99
Features:
- Oversized roller bearings
- Fully anodized crankcase
- Innovative new seal design extends seal life
- New plunger design improves thermal shock resistance
- New valve cap improves hydrostatic performance
