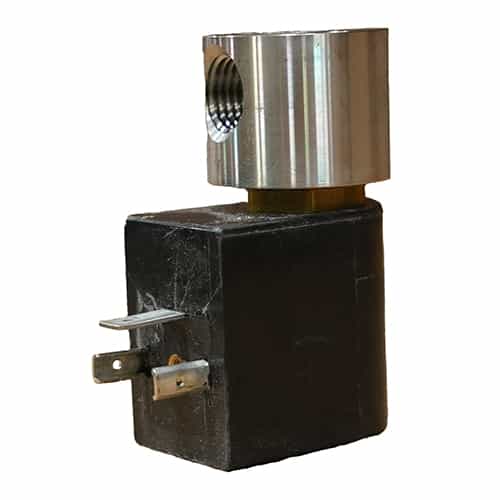

Dema 492S.8.3D Single Station 1/4 in. Valve - No Metering, 24VAC DIN
Brand:
Mfr. Model #:
492S.8.3D
KR Part #:
SOD492S24-DIN
Weight:
0.50 lbs
In Stock
This Dema 492S.8.3D direct acting valve is designed for water, air, light oil, noncorrosive, and non-explosive liquid applications. 24VAC DIN.
NOTE: This is a clearance item with limited inventory. All sales final - no returns.
Prop 65
Technical Specifications
Type: Valve
Product Description
Dema 492S Solenoid Valve with a DIN Connection
With this Dema 492S.8.3D valve, the stem and plunger assembly opens the port of the valve directly and requires no minimum pressure to operate. This version of the Dema 492S Solenoid Valve has a DIN electrical connection.
This is a clearance item with limited inventory. All sales final - no returns.
Details:
- Pipe Size: 1/4" N.P.T. female
- Stainless steel construction
- Non-metering
- Rated for 200 degrees F fluid and 120 degrees F ambient
- CV flow factor .27
- 24VAC
- DIN connection
- Maximum pressure 150 PSI
1/8" orifice - Buna-N seal
