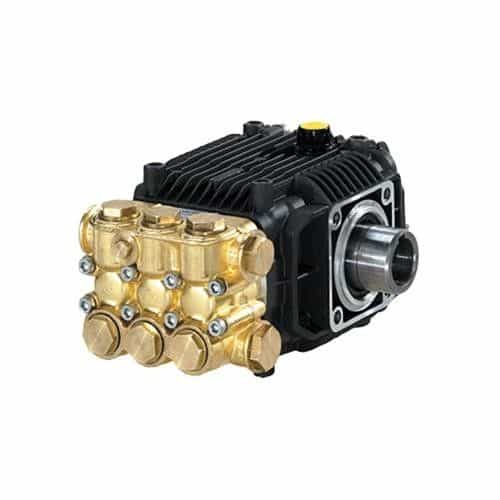

AR North America XMV3G30D-F24 Pump 3GPM, 3000PSI, 3400RPM
Brand:
Mfr. Model #:
XMV3G30D-F24
KR Part #:
ARXMV3G30
Weight:
18.00 lbs
Availability:
1
Low Inventory Get It Today
AR North America plunger pumps are designed for a wide variety of high pressure washing applications.
Technical Specifications
Max PSI: 3000
Max Temperature: 140 degrees F
RPM: 3400
Bore: 15 millimeter
Stroke: 7.6 millimeter
Shaft Diameter: 1 inch
Inlet Port: 1/2 inch
Crankcase Capacity: 14.6 ounce
Max GPM: 3
Product Description
Brass Head Pump
This model XMV3G30D-F24 pump features a brass head. The internal components include solid ceramic plungers for durability, and the precision cast cooling fins are anodized for maximum heat dissipation. There are over-sized needle bearings on the drive side. The ball on the non-drive side and the precision supports assure positive alignment and centering in relation to the crankcase.
- Ball bearings on both sides of solid shaft drive pump
- One-piece connecting rods are special alloy aluminum
- Designed for gearbox, belt drive, or coupling drive systems driven by electric motor or gasoline driven systems
Specifications:
- Crankcase Capacity: 14.6 ounce
- Max Flow: 3.0 GPM
- Max Pressure: 3000 PSI
- Max Temperature: 140° F
- RPM: 3400
- Bore: 15 millimeter
- Stroke: 7.6 millimeter
- Shaft Diameter: 1"
- Inlet Port: 1/2"
