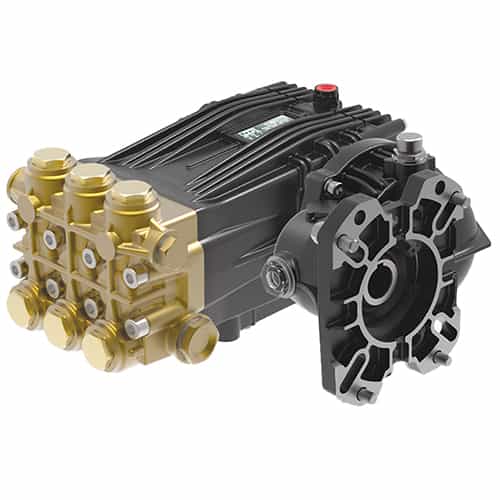

Udor CKC3024GR1 Hollow Shaft Plunger Pump - 1450 RPM, 7.9 GPM, 3480 PSI, 26 Horsepower Gas, 1 Inch Hollow Shaft

Mfr. Model #:
KR Part #:
0.00 lbs
Out of Stock - Pre-Order Now
Now Only!

This CK Series plunger pump features 1″ hollow shafts, heavy duty brass manifolds with internal and external bracing and other design features that make them ideal for car washes and other industrial applications. This model has a power requirement of 26 HP and produces a maximum flow of 7.9 GPM.


Technical Specifications

RPM: 1450
Max GPM: 7.9
Max PSI: 3480
Horsepower: 26
Shaft Diameter: 1 inch
Inlet Port: 3/4 inch
Outlet Port: 3/8 inch

Product Description

Udor Hollow Shaft Plunger Pump - 7.9 GPM

This hollow shaft plunger pump is built to perform with large diameter brass valve caps with increased thread depth, heavy duty brass manifolds with ample bracing, and high strength connecting rods. Also features reinforcing rings on inlet and discharge ports, and increased oil capacity in the 35 oz. vented oil bath crank case.

CKC3024GR1 Specifications:
  • 3/4″ BSP-F Inlet
  • 3/8″ BSP-F Outlet
  • Max fluid temp: 160 degrees F
  • Max pressure: 3480 PSI
  • Flow rate: 7.9 GPM
  • RPM: 1450
  • Power requirement: 26 HP Gas
  • 1″ Hollow Shaft
  • Weight: 49 lbs.
  • Solid Ceramic Plungers
  • Stainless Steel Check Valves
  • Heavy Duty Brass Manifold with External and Internal Bracing
  • High Strength Aluminum Alloy Connecting Rods
  • Large Diameter Brass Valve Caps with Increased Thread Depth
  • Reinforcing Ring on Inlet and Discharge Ports
  • Deeper Back Cover for Increased Oil Capacity
Compatible Kits:
  • 6061.11 Seal Kit
  • 6061.03 Valve Kit
