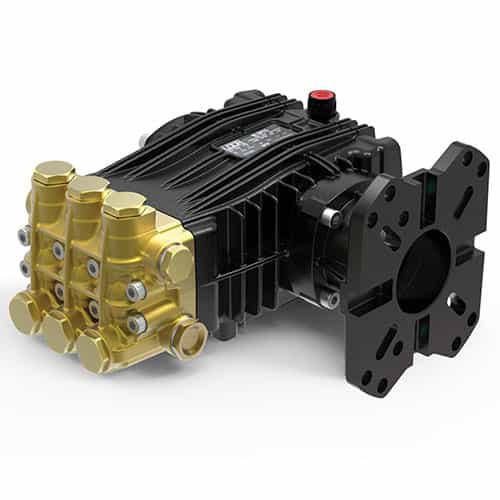

Udor BKL4044W Direct Drive Plunger Pump with Gas Engine Flange - 4350 PSI, 4 GPM, 3400 RPM

Mfr. Model #:
KR Part #:
26.00 lbs
Out of Stock - Pre-Order Now
Now Only!

The Udor BKL4044W Pump is a direct drive plunger pump with an SAE J609-B flange for gas engines. It has a heavy duty brass manifold, reinforced ports, large diameter valve caps, and a deep back cover for increased oil capacity. Use this quality pump for high intensity car wash and pressure washing applications. 4 GPM, 4350 PSI, 3400 RPM.


Technical Specifications

Max PSI: 4350
Max GPM: 4
RPM: 3400
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Shaft Diameter: 1 inch
Max Temperature: 160 degrees F
Crankcase Capacity: 15.4 ounce

Product Description

Udor BKL4044W Direct Drive Pump with with SAE J609-B Flange

The Udor BKL4044W is a plunger pump with a hollow shaft and a SAE J609-B flange to mount gas engines. This pump is ideal for super duty car wash, pressure wash, and other high-pressure cleaning applications. It boasts a heavy duty brass manifold with external and internal bracing, large diameter brass valve caps, port reinforcement rings, and a deeper back cover for increased oil capacity.

Udor BKL4044W Specifications and Features:

  • 4350 PSI maximum pressure
  • 4 GPM maximum flow rate
  • 3400 RPM
  • 1/2" BSP-F inlet
  • 3/8" BSP-F outlet
  • 1" hollow shaft with SAE J609-B flange and set screw
  • 14.5 HP gas power requirement
  • 160° Fahrenheit maximum temperature
  • 15.4 oz. capacity vented oil bath crankcase
  • Heavy duty brass manifold with external and internal bracing
  • High strength connecting rods
  • Reinforcing ring on inlet and outlet ports
  • Deeper back cover for increased oil capacity
