Udor BKD4044S Solid Shaft Plunger - 4 GPM, 4350 PSI, 1750 RPM

Brand:
Mfr. Model #:
BKD4044S
KR Part #:
UDBKD4044S
Weight:
10.90 lbs
Out of Stock - Pre-Order Now
MSRP
$1,118.99
Now Only!
$545.18

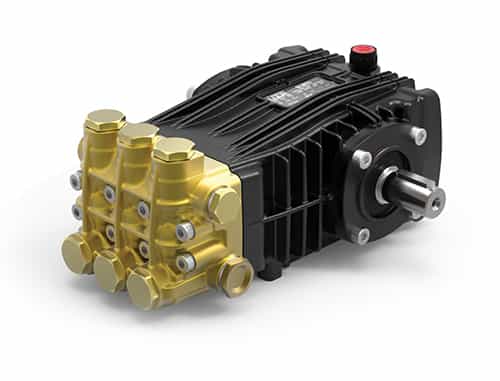

The Udor BKD4044S Plunger Pump is a super duty pump with a heavy duty brass manifold. This Udor B Series pump has a 24mm keyed solid shaft, internal and external bracing, and reinforcement rings on the ports. Use this quality pump for high intensity car wash and pressure washing applications. 4 GPM, 4350 PSI, 1750 RPM.




Technical Specifications

Max PSI: 4350
Max GPM: 4
RPM: 1750
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Crankcase Capacity: 15.4 ounce
Max Temperature: 160 degrees F
Shaft Diameter: 24 millimeter

Product Description

Udor BKD4044S Solid Shaft BK Series Pump

The Udor BKD4044S Pump is a plunger pump with a solid shaft and a heavy duty brass manifold with external and internal bracing. This pump is ideal for super duty car wash, pressure wash, and other high-pressure cleaning applications. It boasts large diameter brass valve caps with increased thread depth, reinforcement rings on the inlet and outlet ports, and a deeper back cover for increased oil capacity.

Udor BKD4044S Specifications and Features:

  • 4350 PSI maximum pressure
  • 4 GPM maximum flow rate
  • 1750 RPM
  • 1/2" BSP-F inlet
  • 3/8" BSP-F outlet
  • 24mm keyed solid shaft
  • 11.5 EBHP power requirement
  • 160° Fahrenheit maximum temperature
  • 15.4 oz. capacity vented oil bath crankcase
  • Heavy duty brass manifold with external and internal bracing
  • High strength connecting rods
  • Reinforcing ring on inlet and outlet ports
  • Deeper back cover for increased oil capacity
