Udor BD40L Left Shaft Plunger Pump with Electric Motor Flange - 4.1 GPM, 2900 PSI, 1750 RPM

Mfr. Model #:
KR Part #:
20.00 lbs
Out of Stock - Pre-Order Now
Now Only!

The Udor BD40L Plunger Pump is a left hand pump with a brass manifold, solid ceramic plungers, and a heat treated crankshaft. This direct drive pump from the Udor B Series has a hollow shaft with a NEMA 182/184 TC flange to mount electric motors. Use this quality pump for standard duty car wash and pressure washing applications. 4.1 GPM, 2900 PSI, 1750 RPM.

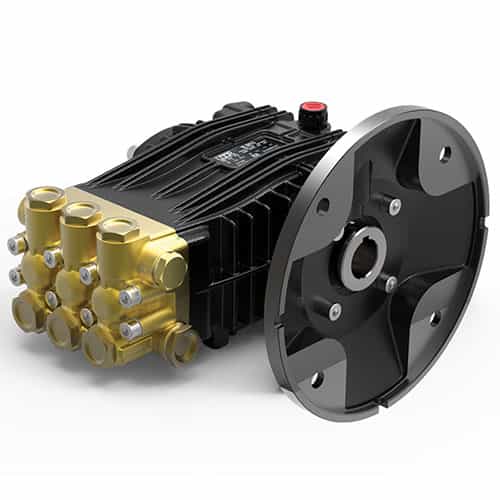

NOTE: This is the left hand version of the pump. The image of the right hand pump is for illustrative purposes only. Please read all specifications carefully before purchasing.


Technical Specifications

Crankcase Capacity: 15.4 ounce
Max Temperature: 160 degrees F
Max PSI: 2900
Max GPM: 4.1
RPM: 1750
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch

Product Description

Udor BD40L Direct Drive Pump with with NEMA 182/184 TC Mounting Flange

The Udor BD40L Pump is a plunger pump with a hollow shaft and a NEMA 182/184 TC Flange to mount electric motors. This pump is ideal for standard duty purposes in car wash, pressure wash, and other high-pressure cleaning applications. It boasts a brass manifold, solid ceramic plungers, and a heat treated crankshaft.

Udor BD40L Specifications and Features:

  • 2900 PSI maximum pressure
  • 4.1 GPM maximum flow rate (15.5 liters/minute)
  • 1750 RPM
  • 1/2" BSP-F inlet
  • 3/8" BSP-F outlet
  • 1 1/8" hollow shaft with NEMA 182/184 TC mounting flange
  • Left hand mount
  • 7.9 EBHP power requirement
  • 160° Fahrenheit maximum temperature
  • 15.4 oz. Capacity Vented Oil Bath Crank Case
  • Brass manifold
  • Heat treated crankshaft
  • Stainless steel piston guides
  • High strength aluminum alloy connecting rods
  • Industrial quality tapered roller bearings
  • Solid ceramic plungers
  • Stainless steel check valves
  • Heavy duty flat base high-pressure seals
  • Replaceable PTFE coated body guides

Compatible Kits:
