Udor PNL3020T Hollow Shaft Plunger Pump with J609-A Gas Flange - 3400 RPM, 3 GPM, 2030 PSI

Brand:
Mfr. Model #:
PNL3020T
KR Part #:
UDPNL3020T
Weight:
13.00 lbs
Out of Stock - Pre-Order Now
MSRP
$785.30
Now Only!
$332.60

Udor PNL series plunger pumps are perfect for car wash and pressure wash applications at your facility. The 3020T model features a 3/4" hollow shaft with an SAE J609-A gasoline motor mounting flange and set screw. Produces up to 3.0 GPM flow at up to 2030 PSI.

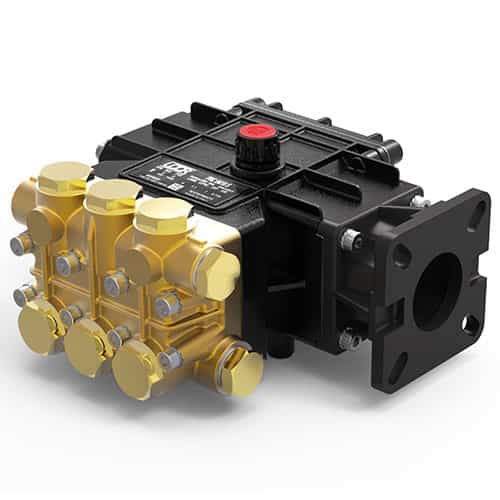

Note: Image won't be exact - read all specifications carefully!




Technical Specifications

Max GPM: 3.0
Max PSI: 2030
RPM: 3400
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Liquid Temperature: 160 degrees F

Product Description

3.0 GPM Hollow Shaft Plunger Pump

Udor PNL3020T model plunger pumps are perfect for car wash and pressure wash applications including misting, reverse osmosis, and more! Features a 3/4" hollow shaft with an SAE J609-A Mounting Flange for connecting to an gasoline motor. Sturdy pump construction features a brass manifold, solid heat treated crankshaft, industrial-quality ball bearings and needle bearing, and solid ceramic plungers for a long life span. Requires 4.1 EBHP to operate.

PNL3020T Features:

  • 3/4" hollow shaft with SAE J609-A Gas Engine Mounting Flange
  • Heavy-duty flat base high pressure seals
  • Stainless steel check valves
  • Stainless steel piston guides
  • Dual oil sight gauges

Specifications:

  • Maximum flow: 3.0 GPM
  • Maximum Pressure: 2030 PSI
  • Power: 3400 RPM
  • Required Horsepower: 5.5 HP Gas
  • Shaft: 3/4" Hollow with SAE J609-A Gas Engine Mounting Flange
  • Inlet: 3/8" BSP-F
  • Outlet: 3/8" BSP-F
  • Maximum Fluid Temperature: 160°F
  • Maximum Oil Capacity: 10.25 oz.

Compatible Kits:
