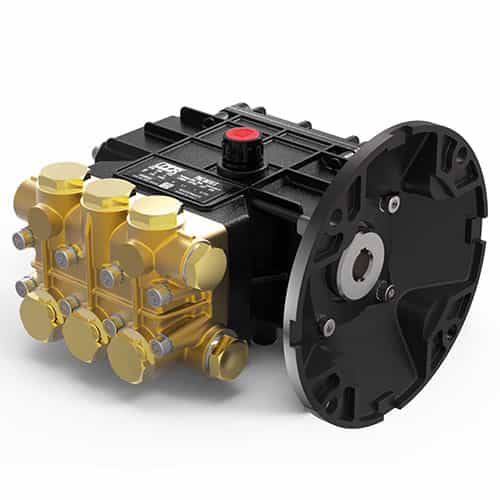

Udor PNL2020Z Hollow Shaft Plunger Pump with NEMA 56C Flange - 3400 RPM, 2 GPM, 2030 PSI

Brand:
Mfr. Model #:
PNL2020Z
KR Part #:
UDPNL2020Z
Weight:
13.00 lbs
Out of Stock - Pre-Order Now
MSRP
$785.30
Now Only!
$332.60

Udor PN series plunger pumps are perfect for car wash and pressure wash applications at your facility. This 2020Z model features a 5/8" hollow shaft with NEMA 56C electric motor mounting flange, and produces up to 2.0 GPM flow at up to 2030 PSI.

Note: Image won't be exact - read all specifications carefully!




Technical Specifications

Max GPM: 2.0
Max PSI: 2030
RPM: 3400
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Liquid Temperature: 160 degrees F

Product Description

2.0 GPM Hollow Shaft Plunger Pump

Udor PNL2020Z model plunger pumps are perfect for car wash and pressure wash applications including misting, reverse osmosis, and more! Features a 5/8" hollow shaft with NEMA 56C Mounting Flange for connecting to an electric motor. Sturdy pump construction features a brass manifold, solid heat treated crankshaft, industrial-quality ball bearings and needle bearing, and solid ceramic plungers for a long life span. Requires 3.0 EBHP to operate.

PNL2020Z Features:

  • 5/8" hollow shaft with NEMA 56C Mounting Flange
  • Heavy-duty flat base high pressure seals
  • Stainless steel check valves
  • Stainless steel piston guides
  • Dual oil sight gauges

Specifications:

  • Maximum flow: 2.0 GPM
  • Maximum Pressure: 2030 PSI
  • Power: 3400 RPM
  • Required Horsepower: 3.0 EBHP
  • Shaft: 5/8" Hollow with NEMA 56C Mounting Flange
  • Inlet: 3/8" BSP-F
  • Outlet: 3/8" BSP-F
  • Maximum Fluid Temperature: 160°F
  • Maximum Oil Capacity: 10.25 oz.
