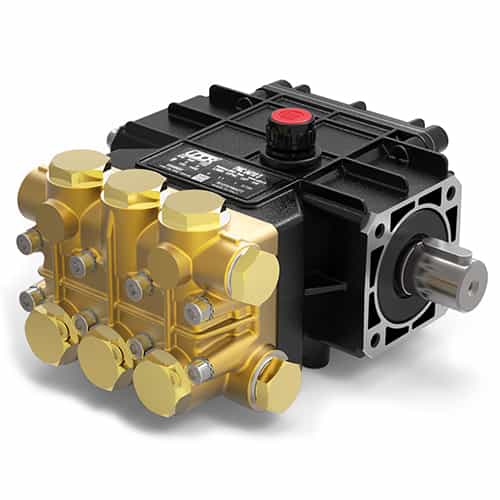

Udor PND3020S Solid Shaft Plunger Pump - 1750 RPM, 3 GPM, 2030 PSI

Mfr. Model #:
KR Part #:
12.00 lbs
Out of Stock - Pre-Order Now
Now Only!

Udor PND series plunger pumps are perfect for car wash and pressure wash applications at your facility. The 3020S model features a solid shaft, and produces up to 3.0 GPM flow at up to 2030 PSI.

Note: Image won't be exact - read all specifications carefully!


Technical Specifications

Max GPM: 3.0
Max PSI: 2030
RPM: 1750
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Liquid Temperature: 160 degrees F

Product Description

3.0 GPM Solid Shaft Plunger Pump

Udor PND3020S model solid shaft plunger pumps are perfect for car wash and pressure wash applications including misting, reverse osmosis, and more! Sturdy pump construction features a brass manifold, solid heat treated crankshaft, industrial-quality ball bearings and needle bearing, and solid ceramic plungers for a long life span. Requires 4.1 EBHP to operate.

PND3020S Features

  • Heavy-duty flat base high pressure seals
  • Stainless steel check valves
  • Stainless steel piston guides
  • Dual oil sight gauges


  • Maximum flow: 3.0 GPM
  • Maximum Pressure: 2030 PSI
  • Power: 1750 RPM
  • Required Horsepower: 4.1 EBHP
  • Shaft: 24MM Keyed Solid
  • Inlet: 3/8" BSP-F
  • Outlet: 3/8" BSP-F
  • Maximum Fluid Temperature: 160°F
  • Maximum Oil Capacity: 10.25 oz.
