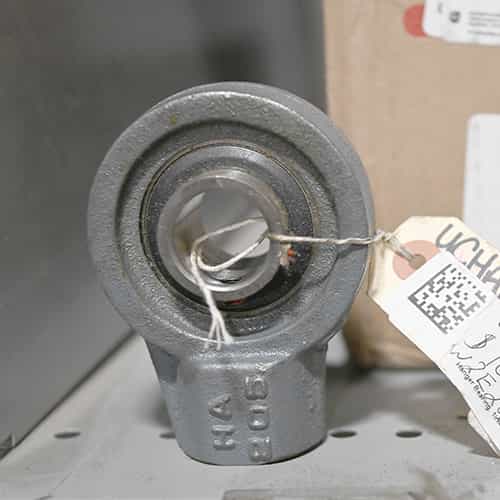

IPTCI UCHA205-16 Standard Duty Cast Iron Hanger Bearing for 1 in. Shafts OPEN-BOX DEAL
Brand:
Mfr. Model #:
UCHA205-16
KR Part #:
UCHA20516-BT
Weight:
1.90 lbs
Availability:
1
Cast iron hanger bearing bored for 1" drive shafts. Standard duty with set screw lock. Wide inner race bearing and B-type seals.
NOTE: This is a Kleen-Rite Open-Box Deal item that was returned, refurbished, or pulled from regular stock. Original packaging may be missing, and the product may have minor cosmetic damage that does not affect the performance. Very limited quantities and price is only valid as long as open-box inventory lasts. All sales final - no returns.
Conveyor & Tunnel
Product Description
1" Bore Standard Duty Hanging Bearing
The IPTCI UCHA205-16 Bearing is a standard duty hanger style bearing with a cast iron housing. Use this bearing to support automatic car wash conveyor shafts with a 1" diameter.
Please note this is a Kleen-Rite Open-Box Deal item that was returned or pulled from regular stock. Original packaging may be missing, and the product may have minor cosmetic damage that does not affect the performance. All sales final - no returns.
Specifications:
- Used with 1" shafts
- Cast iron housing
- Set screw lock
- B-type seals
- Wide inner race bearing
- Bearing Number: UC205-16
- Housing Number: HA205
- Weight: 1.9 lbs.
Drawing Dimensions:
- Dimension A: 3 1/16"
- Dimension Bi: 1.3386"
- Dimension C: 0"
- Dimension D: 3/4"
- Dimension d: 1" shaft diameter
- Dimension H: 2 33/64"
- Dimension K: PF 3/4-14
- Dimension L: 1 9/16"
- Dimension M: .7756"
- Dimension N: .5630"
