5 Horsepower - Electric General Purpose Motor

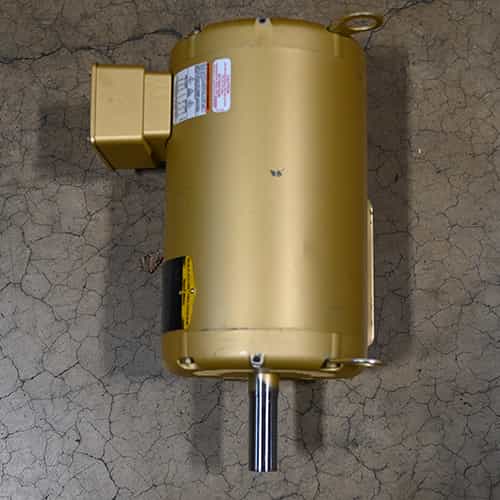

The Baldor EM3218T is a general purpose motor that operates using three phase power. It features an open slotted band enclosure that keeps the motor cool during operation. Designed with a 184T frame that is made with steel for durability and strength. Compatible with 230.0 VAC at 60 HZ, 460.0 VAC at 60 HZ. The motor runs at a maximum speed of 1750 RPM. Length of the shaft measures 1-1/8".

Please note this is a Kleen-Rite Open-Box Deal item that was returned or pulled from regular stock. Original packaging may be missing, and the product may have minor cosmetic damage that does not affect the performance. All sales final - no returns.

Specifications:

• Enclosure: Open Slotted Band (OPSB)
• Frame: 184T
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: 5.000 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
• XP Class and Group: None
• XP Division: Not Applicable
• Agency Approvals: UR, CSA, EEV, CSA
• Ambient Temperature: 40 °C
• Auxiliary Box: No Auxiliary Box
• Auxiliary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 13.200 A @ 230.0 V, 14.000 A @ 208.0 V, 6.600 A @ 460.0 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load:    89.5 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 6.6 a
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Ready
• KVA Code: J
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: No Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 16 AWG
• Motor Type: 3640M
• Mounting Arrangement: F1
• Number of Poles: 4
• Overall Length: 16.50 IN
• Power Factor: 80
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• Service Factor: 1.15
• Shaft Diameter: 1.125 IN
• Shaft Extension Location: Pulley End
• Shaft Length: 1-1/8"
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 1750 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Weight: 82.80 lbs
• GTIN:781568104569
