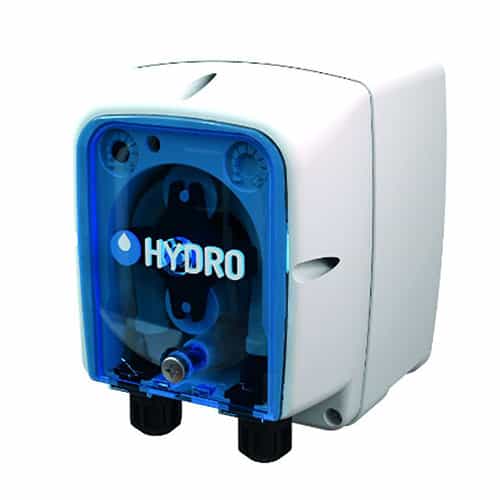

Single Product Warewash Dispensing System

The Hydro Systems CP-500 Warewash Dispensing System is an economical choice for accurate dosing of a single dishwashing product. Usable with a variety of products like rinse aids, detergents, and sanitizers.

This version of the CP-500 has a detergent pump type, a 2 solenoid time/time adjustment combo, and Santoprene tubes. This model has UL electrical approval.

Specifications:

• Single pump for one product
• 90 to 260 VAC at 50/60 Hz
• 14.5 PSI maximum pressure
• 100mL per minute flow rate
• Pump type D (detergent)
• 2TT adjustment combo (2 solenoids, time/time)
• Santoprene tubes
• UL Listed electrical approvals
• Environmental conditions: Degree 2 pollution, 50-104° Fahrenheit temperature range, 95% relative maximum humidity
• Polypropylene construction
• Intake chemicals should be at room temperature
• Dimensions: 9.2" height x 9.3" width x 5.4" depth
• Full Hydro Systems part number: HYDCP500-D1TT1001SANUL

Features:

• Reliable unit for single tank, door-style machines or glass washers
• Minimizes installation time with no complex programming or wiring
• Comes pre-wired with only two wires to connect and 1-2 potentiometers to set
• Attractive design
• Small footprint that minimizes required wall space
