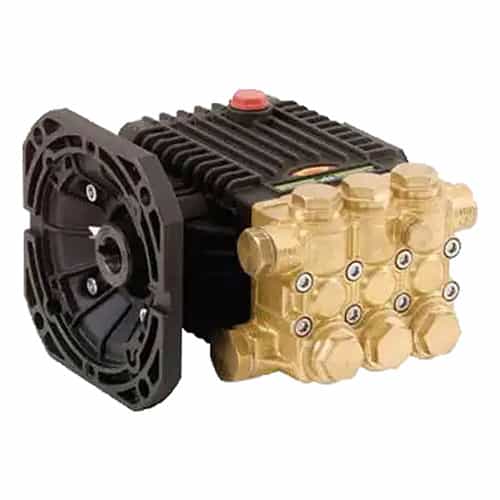

General Pump TC1809E175L Plunger Pump, Left Shaft - 3.1 GPM, 2200 PSI
Brand:
Mfr. Model #:
TC1809E175L
KR Part #:
GPTC1809E175L
Weight:
15.10 lbs
GTIN:
682491119494
This General Pump has a left shaft, new generation seal system that allows for a longer life. High-volume, mid-pressure pump built for rigorous duty cycles, high temperatures, and chemicals. Handles 2200 PSI and produces 3.1 GPM.
Technical Specifications
Max GPM: 3.1
Max PSI: 2200
Bore: 15 millimeter
Stroke: 9.4 millimeter
Crankcase Capacity: 11.8 ounce
Max Temperature: 165 degrees F
Inlet Port: 1/2 inch
Shaft Diameter: 5/8 inch
RPM: 1750
Product Description
2200 PSI Left Shaft General Pump
This General Pump TC1809E175L pump is a triplex plunger pump that has a solid ceramic plunger with a dual guide system. Features ceramic plungers and high-tech packings. Nickel-plated forged brass manifold features lifetime warranty. Ideal for use in car washing and other high pressure applications.Features:
- Triplex plunger pump
- Left shaft version
- Compact design
- Forged brass manifold
- Die/cast, anodized aluminum oil/bath crankcase
- Long life, low pressure seals
- Oversized bearings and sight glass
- Max Volume: 3.1 GPM
- Max Discharge Pressure: 2200 PSI
- Max Pump Speed: 1750 RPM
- Max Inlet Pressure: 125 PSI
- Dimensions: 7.8" x 7.3 x 5.5"
