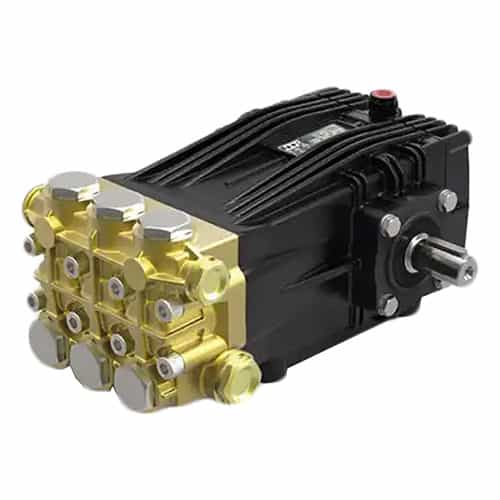

Udor CKC3820S High-Pressure Right Shaft Plunger Pump - 10 GPM, 3000 PSI

Mfr. Model #:
KR Part #:
39.00 lbs
Out of Stock - Pre-Order Now
Now Only!
Heavy duty pump featuring brass manifold, stainless steel piston guides. Deeper back cover provides for increased oil capacity. 10 GPM, 3000 PSI, right shaft.

Technical Specifications

Max GPM: 10
RPM: 1450
Inlet Port: 3/4 inch
Outlet Port: 1/2 inch
Max Temperature: 160 degrees F
Crankcase Capacity: 35 ounce

Product Description

Udor CK-Series Solid Right Shaft Pump

The Udor CKC3820S pump features heavy-duty brass construction, a heat-treated crank shaft, and an extra deep back cover for increased oil capacity to provide worry-free operation. 24mm keyed solid left-hand shaft makes it easy to integrate into your system. With a flow of up to 10 GPM at up to 3000 PSI, it provides reliable and consistent performance perfect for pressure washing, car washing, agricultural, and other high-pressure spraying applications.


  • Max GPM: 10 GPM
  • Max Pressure: 3000 PSI
  • Power Requirement: 19.5 HP Electric
  • Pump Speed: 1450 RPM
  • Inlet Port: 3/4" BSP-F
  • Outlet Port: 1/2" BSP-F
  • Maximum Temperature: 160°F


  • Right-side shaft
  • Reinforcing ring on inlet and discharge ports
  • Heat treated crank shaft
  • Industrial quality tapered roller bearings
  • Deep back cover for increased oil capacity
  • 35 oz. capacity vented oil bath crank case
