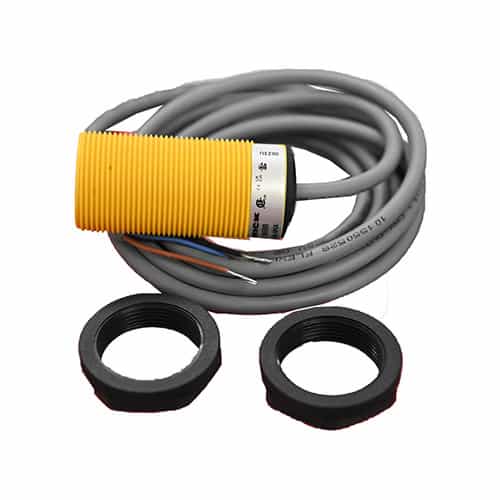

Turck BI10-S30-AP6X Ferrite Coil Threaded Barrel Inductive Sensor - M30 x 1.5, 10mm Range, 10-30VDC
Brand:
Mfr. Model #:
BI10-S30-AP6X
KR Part #:
TPSC5130
Weight:
0.55 lbs
Inductive proximity sensor that detects metal objects up to 10 millimeters without any contact or wear. Uses a high-frequency electromagnetic field generated by an RLC circuit with a ferrite coil. Has a threaded barrel and uses cable electrical connection. M30 x 1.5, 10-30VDC.
Technical Specifications
Voltage DC: 10-30
Amps: 200mA
Product Description
Threaded Barrel DC Inductive Proximity Sensor
The Turck BI10-S30-AP6X Sensor is and inductive type sensor with a threaded barrel and cable connection. Using a high-frequency electromagnetic AC field, it detects metal objects without requiring any contact or wear. The field is generated via an RLC circuit with a ferrite coil.
Turck BI10-S30-AP6X Specifications and Features:
- Design: Threaded barrel, M30 x 1.5
- Sensing Distance: 10mm
- Operating Voltage: 10-30VDC
- DC Rated Operational Current: less than or equal to 200mA
- No Load Current: 15 mA
- Output Function: 3-wire, NO contact, PNP
- Housing Material: Plastic, PA12-GF30
- Active Area Material: Plastic, PA12-GF30
- End Cap Material: Plastic, EPTR
- Connection: Cable
- Ambient Temperature Range: -13° to 158° Fahrenheit
- Standards and Certifications: RoHS compliant, IP67 protection class
- For advanced specifications and mounting instructions, please see the data sheet listed under "Manuals."
