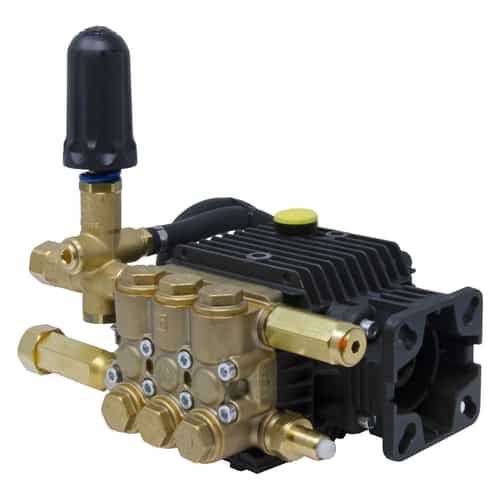

General Pump PMRTP2530J34 Triplex Plunger Pump Made Ready - 2.88 GPM, 2500 PSI
Brand:
Mfr. Model #:
PMRTP2530J34
KR Part #:
GPTP2530J34-PMR
Weight:
15.00 lbs
Availability:
1
Convenient and powerful, this pump comes ready to go right out of the box! The Pump Made Ready series comes pre-plumbed, with thermal valve and unloader, for easy integration. Provides 2.88 GPM flow max, at pressures up to 2500 PSI.
Technical Specifications
Max GPM: 2.88
Max PSI: 2500
RPM: 3400
Inlet Port: 3/8-19 inch
Outlet Port: 1/2-14 inch
Max Temperature: 165 degrees F
Crankcase Capacity: 11 ounce
Product Description
Gasoline Engine-Ready Triplex Plunger Pump
Get pumping immediately with the General Pump PMRTP2530J34 triplex plunger pump! Part of the "Pumps Made Ready" line, this item is ready for use right out of the box. Enjoy the trusted performance of a General Pump TP2530J34, complete with SAE J609B gas flange and PULSAR4KHPEZ unloader. 3/4" hollow shaft means this pump is ready to be directly coupled to a gasoline engine. The pump also includes a 3/8" quick coupler and plug, as well as a 3/4" garden hose inlet fitting.Specifications:
- Pump Made Ready Item Number: PMRTP2530J34
- Triplex plunger pump model: TP2530J34
- Ready to use right out of the box
- Includes gas flange and an unloader
- Maximum volume: 2.88 GPM
- Maximum inlet pressure: 125 PSI
- Maximum discharge pressure: 2500 PSI
- Maximum pump speed: 3400 RPM
- Maximum inlet vacuum: 3 feet
- Maximum fluid temperature: 165° F
- Inlet: 3/8-19 BSPP-F
- Outlet: 1/2-14 BSPP-F
- Hollow Shaft: I.D. 3/4"
- Crankcase Oil Capacity: 11.0 oz.
- Stroke: .283"
- Dimensions: 7.0" x 7.2" x 5.5"
- Weight: 15 lbs.
- PULSAR4KHPEZ unloader, 4050 PSI, 10 GPM
- 3/8" quick coupler
- 3/8" plug
- 3/4" garden hose inlet fitting
- 1/4" side port
- 3/8" hose barb
