General Pump PHTCK3623S Series 70PHT Emperor Pump - 25 GPM, 1300 PSI, 1350 RPM, Right Shaft

Brand:
Mfr. Model #:
PHTCK3623S
KR Part #:
GPPHTCK3623S
Weight:
77.40 lbs
GTIN:
682491076889
Usually Ships in 2 Weeks
MSRP
$8,652.76
Now Only!
$2,954.60
High volume, high tech pump for use in car wash and other high pressure cleaning applications. This pump series is specifically designed to handle lower temperatures, chemicals, and rigorous duty cycles. Up to 25.0 GPM flow at 1300 PSI.
Freight Only

Freight Only




Technical Specifications

Max GPM: 25
Max PSI: 1300
RPM: 1350
Max Temperature: 140 degrees F
Inlet Port: 1 inch
Outlet Port: 1/2 inch
Bore: 36 millimeter
Stroke: 23 millimeter
Shaft Diameter: 30 millimeter

Product Description

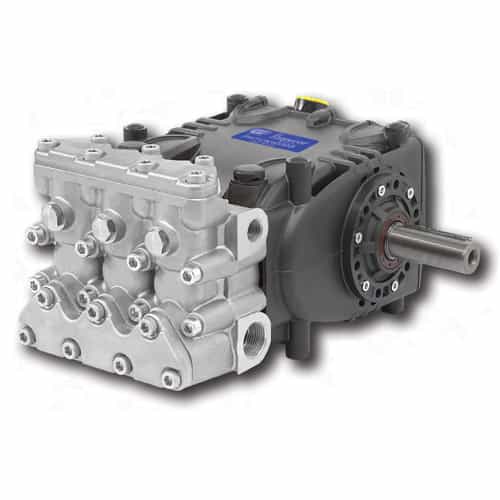

General Pumps Emperor PHTCK3623S Pump

The perfect fit for car washes and other high pressure applications, the Emperor PHTCK3623S Pump handles rigorous duty cycles and chemicals found in the hardest-working environments. Nickel-plated forged brass manifold, heavy-duty tapered roller bearings, and ceramic plungers all add high levels of durability. High-tech packings provide longer maintenance intervals. Use with cool fluids up to 140­°F - higher temperatures require a red label hi-temp pump.

Dimensions: 15.3" x 13.4" x 7.7"

Features:

  • Dynamic low-pressure seal retainer
  • Superior low-pressure seal
  • Innovative intermediate ring
  • Superior high-pressure seal
  • Ceramic plungers
  • Patent-pending inlet/outlet valve cage
  • Nickel-plated forged brass manifold
  • Heavy-duty tapered roller bearings

Specifications:

  • Maximum Volume: 25 GPM
  • Maximum Pressure: 1300 PSI
  • Maximum Pump Speed: 1350 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Bore: 36 mm
  • Stroke: 23 mm
  • Crankcase Oil Capacity: 64.2 oz.
  • Maximum Fluid Temperature: 140°F
  • Inlet Port Thread: 1" NPT-F
  • Discharge Port Thread: 1/2" NPT-F
  • Shaft Diameter: 30 mm
  • Shaft Position: Right
  • Weight: 79.6 lbs.
