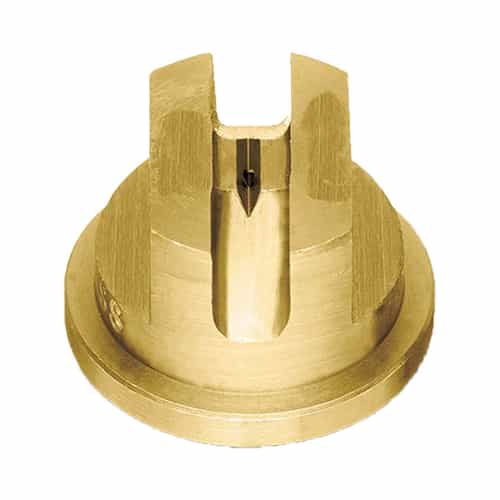

Spraying Systems TPU4030 UniJet Flat Fan Brass Spray Tip - 0.133 Inch Orifice

Brand:
Mfr. Model #:
TPU4030
KR Part #:
SNTP4030
Weight:
0.15 lbs
Usually Ships in 2 Weeks
MSRP
$6.33
Now Only!
$2.76
UniJet TP series spray nozzles offer reliable fan pattern spray distribution for general wash applications. Brass construction. Features a 0.133" orifice.



Product Description

UniJet Spray Tip

Get a consistent wash every time with reliable Spraying Systems UniJet spray tips. Flat fan patterns provide an even distribution across the surface during a variety of wash applications. Spray tips are easily replaced to suit any need.

Specifications:
  • Capacity Size: 30
  • Inlet Connection Type: Quick-connect
  • Liquid Flow Rate at Rated Pressure: 3 GPM
  • Material Composition: Brass
  • Model: TPU
  • Product Type: Tip
  • Spray Angle at Rated Pressure: 40°
  • Tip Type: TPU
  • Relative Drop Size Group
  • 100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
Performance:
  • Spray Angle Range: 33 - 48°
  • Liquid Flow Rate: 1.1 gpm @ 5 psi, 1.5 gpm @ 10 psi, 2.1 gpm @ 20 psi, 3 gpm @ 40 psi, 4.2 gpm @ 80 psi, 4.7 gpm @ 100 psi, 6.7 gpm @ 200 psi, 8.2 gpm @ 300 psi, 10.6 gpm @ 500 psi
  • Spray Angle: 33° @ 20 psi, 40° @ 40 psi, 45° @ 80 psi, 48° @ 200 psi33° @ 1.5 bar, 40° @ 3 bar, 45° @ 6 bar, 48° @ 15 bar
Standard Feature:
  • Equivalent Orifice Diameter: 0.133 in0.338 cm
  • Liquid Flow Rate Range: 1.1 - 10.6 gpm
  • Liquid Pressure Range: 5 - 500 psi0.4 - 35 bar
  • Rated Pressure: 40 psi2.758 bar
  • Relative Drop Size Range: 100 - 5,000 µm100 - 5,000 µm
  • Spray Pattern: Flat Fan
Applications:
  • Metal cleaning / processing
  • Spray coating
  • Degreasing / rinsing
  • Parts washing
  • Spray cooling
  • Pressure cleaning
  • Sand, coal, gravel washing
