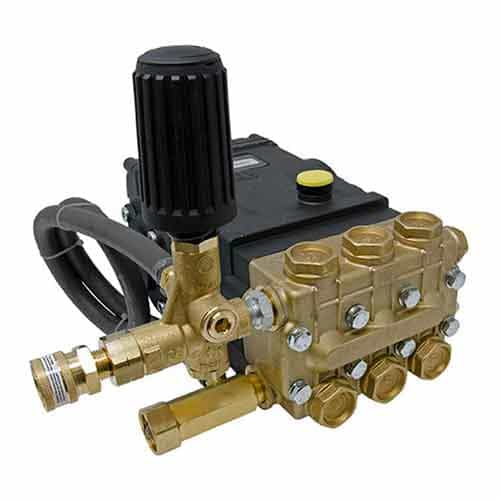

TSS1511 Pump with PULSAR4KHPEZ Unloader

The General Pump PMRTSS1511 Pumps Made Ready Package includes a TSS1511 Pump and a PULSAR4KHPEZ Unloader. The triplex plunger pump has a forged brass manifold, a die-cast anodized aluminum crankcase, and solid ceramic plungers. This pump kit is ready for use directly out of the box.

Dimensions: 12.6" x 9.2" x 6.9"

Specifications and Features:

• 4 GPM maximum volume

• 3500 PSI maximum discharge pressure

• 1450 RPM maximum pump speed

• 3/8" Quick Coupler and 3/8" plug included

• 3/4" garden hose inlet fitting with 1/4" side port

• 3/8" hose barb and clamp keeps hose secure and sealed

• 125 PSI inlet pressure

• 9 ft. water maximum inlet vacuum

• .787" plunger bore (20mm)

• .472" plunger stroke (12mm)

• 37.2 ounce crankcase oil capacity

• 165° maximum fluid temperature

• .945" shaft diameter (24mm)

• 9.6 EBHP

• Pump is ready to use right out of the box

• Includes General Pump TSS1511 Pump and PULSAR4KHPEZ Unloader

• General Pump recommends installing a secondary relief and pressure gauge
