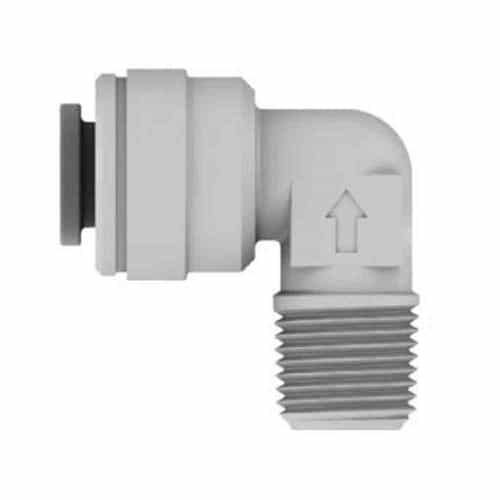

John Guest NC2811 Reverse Osmosis Membrane Elbow Check Valve - 1/4 Inch Tube, 1/8 Inch NPT

Brand:
Mfr. Model #:
NC2811
KR Part #:
NC2811
Weight:
0.20 lbs
Out of Stock - Pre-Order Now
MSRP
$8.28
Now Only!
$5.89
An elbow style check valve designed to prevent water from flowing back into your R.O. membrane. Acetal construction with an EPDM O-ring. Made with a 1/4" tube connection and a 1/8" NPT connection.



Technical Specifications

Max Temperature: 150 degrees F
Min Temperature: 33 degrees F
Inlet Port: 1/8 inch
Outlet Port: 1/4 inch
Max PSI: 150

Product Description

R.O. Membrane Outlet Check Valve

The John Guest NC2811 is an elbow check valve for the outlet of reverse osmosis membranes to prevent soft water from flowing backwards. Acetal construction allows fluid to glide through it with ease due to is low surface friction. Handles a maximum pressure of 150 PSI at 68 degrees Fahrenheit. Its cracking pressure is set to activate at 0.3 PSI. Designed with a 1/4" tube connection and a 1/8" NPT connection.

Specifications:

  • Max temp: 150 degrees F
  • Max: 150 PSI at 68˚F
  • Min: 33˚F
  • Crack Pressure: 0.3 PSI
  • Max Torque: 1.1 ft.-lbs.
  • Body: Acetal - White
  • O-ring: EPDM

Applications:

  • RO Membrane Housing
  • Water Filtration
