Udor Z85P Zeta Universal VA Drive 3-Cylinder Low-Pressure Diaphragm Pump - 300 PSI, 22 GPM

Brand:
Mfr. Model #:
Z85P
KR Part #:
UDZ85P
Weight:
40.00 lbs
Out of Stock - Pre-Order Now
MSRP
$2,646.61
Now Only!
$1,306.76

The Udor Z85P is a low-pressure diaphragm pump for soft washing and other aggressive chemical applications. Poly head, stainless steel liquid handling parts, and an externally mounted manifold. 300 PSI, 22 GPM, 550 RPM.




Technical Specifications

Max PSI: 300
Max GPM: 22
RPM: 550
Inlet Port: 1 1/2 inch
Outlet Port: 1 1/2 inch
Bypass Port: 3/4 inch

Product Description

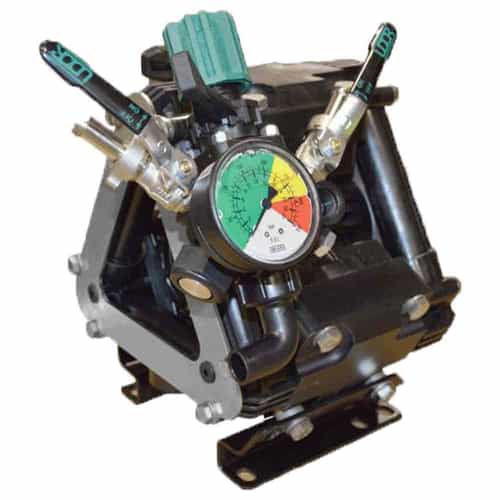

Udor Z85P Universal VA Drive Face Zeta Pump

The Udor Z85P Pump is a 3-cylinder diaphragm pump for low-pressure applications up to 300 PSI. It has a poly head, an externally mounted manifold, and stainless steel liquid handling parts. A control valve with a pressure gauge comes standard. This pump is ideal for the soft wash industry and other applications requiring aggressive fluid applications.

Dimensions:

  • 11" L x 11" W x 12" H

Udor Z85P Specifications:

  • 300 PSI maximum pressure (20 bar)
  • 22 GPM
  • 1 1/2" hose barb inlet ports
  • 1 1/2" (x2) hose barb outlet ports
  • 3/4" bypass port
  • GREENTECH diaphragm
  • Universal VA Drive Face
  • 550 RPM
  • 29 lbs.

Lubrication:

  • Requires 39 ounces of Udor Lube 40W Premium Pump Oil (recommended)
  • 30W non-detergent or 15W-40 non-detergent oil can be used as an alternative
