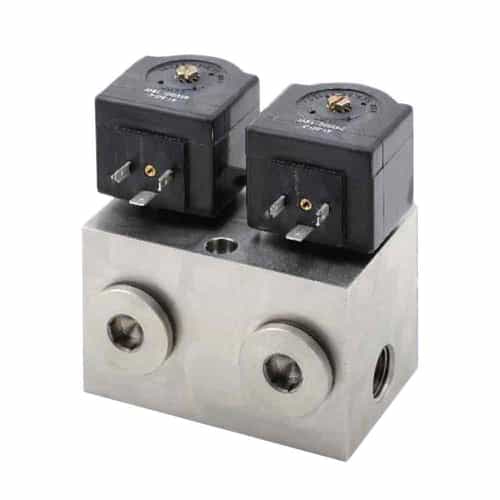

Dema 456M2.6.OC.3D High Pressure Manifold Valve, 2-Station 1 NC 1 NO, 3/4 In. NPT, 24VAC, DIN Coils
Brand:
Mfr. Model #:
456M2.6.OC.3D
KR Part #:
SOD456M2-6-OC-3D
Weight:
13.00 lbs
Out of stock - Pre-Order Now!
Stainless steel pilot-piston high pressure manifold. 2-station - 1 normally open, 1 normally closed - configuration. 24VAC DIN coils, 3/4" NPT inlet and outlet.
Technical Specifications
Max PSI: 1200
Inlet Port: 3/4 inch
Outlet Port: 3/4 inch
Voltage AC: 24
Product Description
2-Station Manifold, 1 Normally Open/1 Normally Closed
Dema manifold valves are designed for use with water, air, light oil, and noncorrosive liquids. This valve has a 303 stainless steel manifold block with a common inlet port for chemical supply to all valves on both ends. Also features a 303 stainless piston, sleeve, and seat. The steam and plunger assembly opens the port of the direct acting valve directly, requiring no minimum pressure to operate. Maintenance cavity provides for easy access to internal components.
Specifications:
- 2 station
- 1 Normally Closed/1 Normally Open
- Maximum pressure: 1200 PSI
- CV Flow Factor #: 3.0
- 3/4" NPT Inlet and Outlets
- 24VAC DIN coil
- Body Material: Stainless Steel
