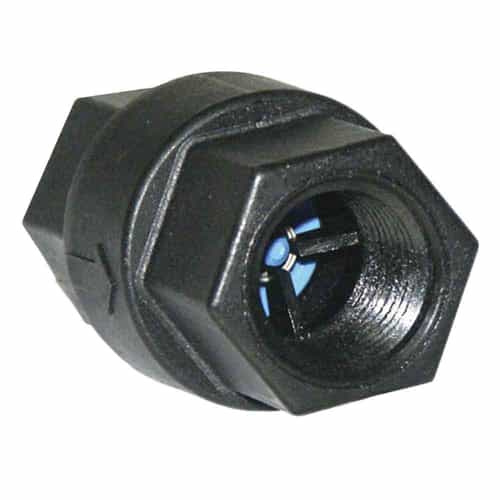

6870090 Polypropylene 687 Series Black Check Valve - 3/4in. F x 3/4in. F - For Sonny's Automatics

Brand:
Mfr. Model #:
6870090
KR Part #:
CV0087
Weight:
0.10 lbs
In Stock
MSRP
$13.92
Now Only!
$10.12
Black polypropylene material check valve with 3/4" FNPT ports, stainless steel spring, and a Viton seal. 125 PSI max pressure rating. 1 PSI opening pressure.



Technical Specifications

Max PSI: 125
Inlet Port: 3/4 inch
Outlet Port: 3/4 inch
Max Temperature: 140 degrees F
Max GPM: 17

Product Description

3/4" Black Poly Poppet Check Valve

The SMC 6870090 check valve is made with polypropylene and has a maximum pressure of 125 PSI. Keeps flow of fluids in the proper direction to maintain optimal pressure levels and flow rates. Install downstream from pump for water hammer protection. May be installed vertically or horizontally.

Specifications:

  • 3/4" FNPT x 3/4" FNPT connection ports
  • Seat material glass filled polypropylene
  • 1 PSI cracking pressure
  • 125 PSI maximum pressure
  • Polypropylene construction
  • Stainless Steel spring
  • Max Operating Temperature: 140° F
  • Viton seals
  • 17GPM one-way check valve
  • Hex size 0.94in
  • Weight: .11 lbs.
  • Sonny's crossover part #10003054
