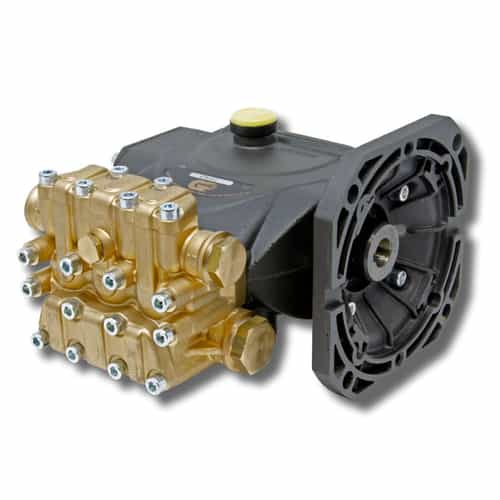

General Pump ETB1502E175 Electric ETB Series Triplex Plunger Pump - 0.25 GPM, 2500 PSI, 1750 RPM
Brand:
Mfr. Model #:
ETB1502E175
KR Part #:
GPETB1502E175
Weight:
11.00 lbs
A triplex plunger pump with a forged brass manifold and ceramic plungers to deliver a longer life span. The NEMA 56C shaft measures 5/8". Delivers a maximum flow rate of 0.25 GPM.
Technical Specifications
Max GPM: .25
Max PSI: 2500
RPM: 1750
Bore: 15 millimeter
Stroke: 2 millimeter
Horsepower: .5
Crankcase Capacity: 8.5 ounce
Shaft Diameter: .625 inch
Inlet Port: 1/2-14 Inch BSP-F
Outlet Port: 3/8-19 Inch BSP-F
Max Temperature: 165 degrees F
Product Description
5/8" Hollow Shaft Plunger Pump
The General Pump ETB1502E175 is an electric triplex plunger pump from the ETB series. It is built with a forged brass manifold to increase the durability of the pump's head. Plungers are made with solid ceramic to improved strength. Designed with a 5/8" hollow shaft that meets NEMA 56C flange standards. The pump is engineered to endure a maximum pressure of 2500 PSI, handles a maximum speed of 1750 RPM, and produces a flow rate of 0.25 GPM.Specifications:
- GPM: 0.25
- PSI: 2500
- RPM: 1750
- Bore: 0.591 in./15 mm
- Stroke: 0.079 in./2 mm
- HP: 0.5 EBHP
- Maximum Inlet Pressure: 125 PSI
- Max. Inlet Vacuum: 3 ft. water (2.6 Hg) Flooded
- Plunger Bore (in / mm): .591 in./15 mm
- Plunger Stroke (in / mm): .079 in./2.0 mm
- Oil Capacity: 8.5 oz.
- Maximum Fluid Temperature: 165° F
- Inlet Port Thread: 1/2"-14 BSP-F
- Discharge Port Thread: 3/8"-19 BSP-F
- Shaft Diameter: 5/8" Hollow
- Weight: 11.0 lbs.
- Dimensions: 7.3" x 7.4" x 5.5"
- Durable forged brass manifold
- Dust protection chamber
- Solid ceramic plungers
- Advanced plunger mounting system
- Valve cover for ease of service
- NEMA 56C flange, 5/8" hollow shaft
