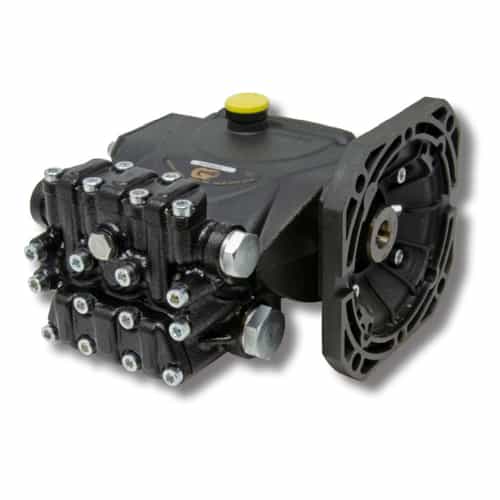

General Pump ET1505E34L ET Series Triplex Plunger Pump - 2.1 GPM, 2610 PSI, 3400 RPM, Left Shaft
Brand:
Mfr. Model #:
ET1505E34L
KR Part #:
GPET1505E34L
Weight:
11.00 lbs
GTIN:
682491152279
An electric ET Series triplex plunger pump. Crankshaft connects with an electric NEMA56C motor. Produces a maximum flow rate of 2.1 GPM.
Technical Specifications
Max GPM: 2.1
Max PSI: 2610
RPM: 3400
Horsepower: 3.7
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Max Temperature: 165 degrees F
Shaft Diameter: 5/8 inch
Stroke: 5 millimeter
Crankcase Capacity: 8.5 ounce
Product Description
3400 RPM - Electric Direct Drive Pump
The General Pump ET1505E34L is a triplex plunger pump from the ET Series pump line. Designed with a hollow shaft that is flanged and accepts a NEMA56C electric motor to power the pump. An anti-corrosion coating is applied the manifold to prevent rust. The oversized crankcase holds 8.5 ounces of oil which is used to lubricate moving components to reduce wear. A maximum flow rate of 2.1 GPM is produced by the pump. Handles a maximum pressure of 2610 PSI.Specifications:
- Maximum Flow Rate: 2.1 GPM
- Maximum Discharge Pressure: 2610 PSI
- Horsepower: 3.7 EBHP
- Maximum Pump Speed: 3400 RPM
- Maximum Inlet Pressure: 125 PSI
- Max. Inlet Vacuum: Flooded
- Plunger Bore: .591"/15 mm
- Plunger Stroke: .197"/5 mm
- Oil Capacity: 8.5 oz.
- Maximum Fluid Temperature: 165° F
- Inlet Port Thread: 1/2"-14 BSP-F
- Discharge Port Thread: 3/8"-19 BSP-F
- Shaft Diameter: 5/8" Hollow
- Shaft Orientation: Left
- Weight: 11.0 lbs.
- Dimensions - Nominal: 7.3" x 7.4" x 5.5"
- “HR” anti-corrosion surface treatment on manifold
- New generation seal package
- Dust protection chamber
- Solid ceramic plungers
- Oversized plunger guide
- Optimized inlet and outlet valves
- Oversized crankcase
- Hollow shaft, flanged for direct couple to electric motors (NEMA56C)
