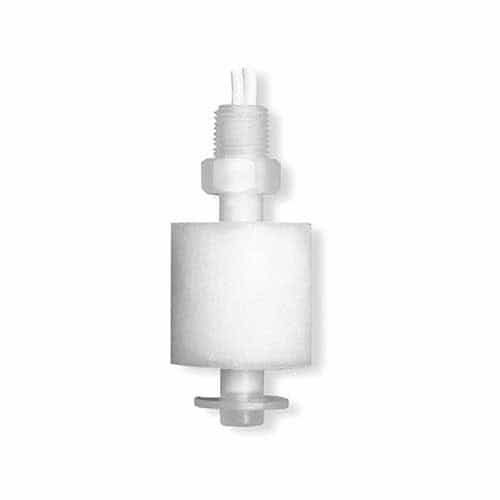

Madison M8000 Vertical Open Tank Liquid Level Switch - Polypropylene, 1/8in NPT

Brand:
Mfr. Model #:
M8000
KR Part #:
LLS300
Weight:
0.06 lbs
Availability:
2
Low Stock Warning
Now Only!
$14.48
This encapsulated, dependable, magnetically coupled, dry-reed switch can be used to control motor starters, contactors, solenoids, and relays. Features selectable switch function.



Product Description

Poly Liquid Level Switch

The vertical open tank mount liquid level switch delivers more than 5 million switching cycles at a rated electrical load. Constructed with polypropylene stem, float and body and an 1/8" NPT connection.

Dimensions: 1" L x 1"W x 2.25" H, 1" diameter

Specifications:
  • Stem length: 1.63"
  • Connection: 1/8" NPT
  • Max Pressure: 100 PSI
  • Max Temp: 221 degrees F
  • Material: Polypropylene
  • Contact Form: SPST
  • Max current: .28 A
  • Max voltage: 240V
  • VA rating: 30
  • Standards: CE, CSA, NSF, UL
  • Electrical connections: 22 AWG MTW Coated 24 in Leads
