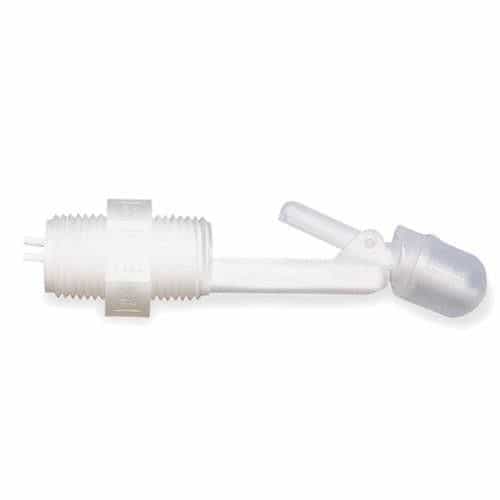

Madison M8700 Tank Liquid Level Switch, Polypropylene Float - 1/2in x 1/2in MNPT

Mfr. Model #:
KR Part #:
0.07 lbs
In Stock
Now Only!

Liquid level dry reed switch with 1/2" x 1/2" connections. This is a dependable switch that is used to control solenoids, relays and motor starters.


Product Description

Liquid Level Switch 1/2in MNPT

The vertical open tank mount liquid level switch delivers more than 5 million switching cycles at a rated electrical load. Constructed with polypropylene stem, float and body and an 1/2" MNPT connections.
Dimensions: 2.11" L x 2.75"W x .65" diameter

  • Horizontal Side Mount
  • Tank Connection Size: 1/2 In. x 1/2 In. MNPT
  • VA Rating: 30
  • Operating Temp. Range: 221 Degrees F Max.
  • Max. Pressure: 100 psi
  • Switch Function: Selectable
  • Overall Length 2.75 In.
  • Material: Polypropylene
  • Stem Length 2.75 In.
  • Contact Form SPST
  • Max. Current: 10A
  • Max. Voltage: 240
  • Electrical connections: 22 ga MTW Coated 24 in Leads
  • Standards: CE, CSA, NSF, UL
