Hydro Systems 113205WSP SuperDos 20 2.5-Percent Injector for Water Soluble Products - Viton Seals

Mfr. Model #:
KR Part #:
9.64 lbs
Out of Stock - Pre-Order Now
Now Only!
Non-electric, fluid-drive proportional injector. Separate internal mixing chamber provides for uniform mixing. Interchangeable lower ends provide the ability to adjust ratios while in operation. Extra durable SuperDos that can be used for applications with water soluble products.

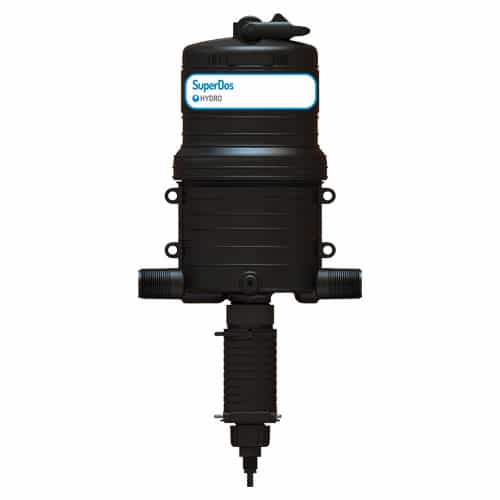

NOTE: Image illustrates the product line, but may not show the exact model being sold on this page. Please carefully check all specifications and details before purchasing.

Technical Specifications

Max GPM: 20
Min PSI: 5
Max PSI: 100
Min Temperature: 34 degrees F
Max Temperature: 100 degrees F
Min GPM: .05

Product Description

SuperDos Proportional Injector for Water Soluble Products

Get the right mix without the need for a nearby electrical hookup! The SuperDos 20 2.5% injects liquid concentrates into a water supply line using fluid flow as the power source. Proprietary composite body offers chemical compatibility, even with aggressive chemicals. Interchangeable lower ends provide the ability to adjust ratios while in operation. Great for applications including car wash applications, cleaning, descaling, disinfecting and decontamination, hydroponics, misting systems, agricultural applications, soaps and foams, and much more!
This version of the SuperDos is a slightly more robust model that can be used with water soluble products (WSP) like powdered detergents and cleaners.

  • Flow Rate: 0.05 - 20 GPM
  • Operating Pressure: 5 - 100 PSI
  • Temperature Range: 34°F to 100°F
  • Injection Rate: 1:500 - 1:40
  • Inlet/Outlet Connections: 1" NPT/BSP
  • Viton seals
  • Slightly more robust design for water soluble products
