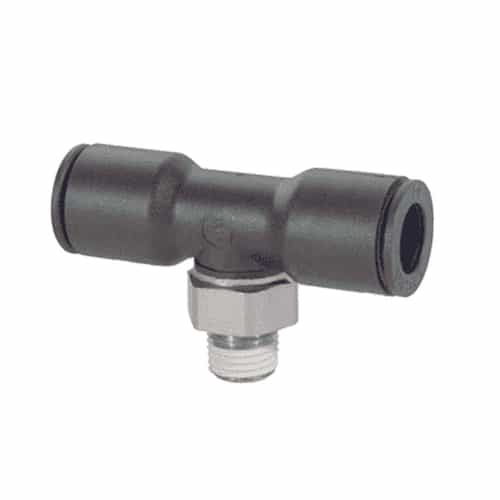

Shingle and Gibb 3108-62-14 Nylon Nickel-Plated Brass Push-In Swivel Branch Tee - 1/2in. Tube OD x 1/4in. MNPT

Mfr. Model #:
KR Part #:
1.00 lbs
In Stock
Now Only!
A push-in swivel tee fitting. No tools required to install. Handles a maximum pressure of 290 PSI at an ambient temperature of 70 degrees F.

Technical Specifications

Outlet Port: 1/4 inch
Max PSI: 290
Min Temperature: -4 degrees F
Max Temperature: 175 degrees F

Product Description

Easy Install Push-In Fitting

The Shingle & Gibb 3108-62-14 is a push-in fitting designed for installation without using any tools. To install, push the tubing in. To remove press the release rings in and pull out the tubing. Swivel is constructed with nickel-plated brass and the body is created with black glass-filled nylon. It withstands a working pressure of 290 PSI at an ambient temperature of 70 degrees Fahrenheit. The tubing connections measure 1/2" with a swivel connection measuring 1/4" NPT.

  • Tube OD: 1/2"
  • Male NPT: 1/4"
  • Seal: Buna-N D
  • Max PSI: 290 (19.73 bar)
  • Min/Max Temp: -4 deg. F / 175 deg. F (-20.00 deg. C / 79.44 deg. C)
  • Material: Nylon/Nickel-Plated Brass
  • Nickel-plated brass threads; black body is glass-filled nylon; Buna-N D seal; polypropylene release button; silicone free.
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
  • Working pressure: fittings rated to 290 PSI at ambient temperature.
  • Maximum circuit pressure depends equally on the type and diameter of the tube used.
  • Working temperature: -4 deg. F to 175 deg. F.
  • Pre-applied thread sealant on all tapered male pipe threads.
  • Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.
  • Vacuum capability: vacuum of 28" Hg (99% vacuum).
  • Gripping Ring Technology:
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
  • No tools required.
