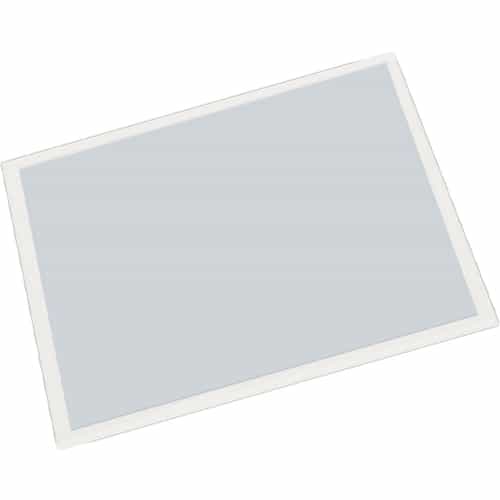

2'x2' Ultra-Thin Ceiling Light

The LSI 650314B is a light panel designed to provide 3000 lumens of ambient light in car washes, schools, hospitals, offices, and stores. Features edge-lit technology to deliver fully diffused uniform light distribution. Designed with the standard 0-10v dimming ability. The 3500K color temperature profile produces a yellow colored light. The frame is constructed with die-formed code gauge steel and aluminum painted and coated with a phosphate rust inhibitor. Compatible with 120-277 VAC electrical connections. Engineered to meet RoHS compliance standards.


Specifications:

• Part Number Breakdown
• SFP22-LED-30L-UNV-DIM-35
• Family: SFP24
• LED Gen: LED
• Lumen Package: 30 - 3000 Lumens
• Dimensions: 2' x 2'

Optical System:

• Laser etched PMMA Light Guide Plate for uniform lighting
• Smooth patterned impact-resistant white diffuse lens provides high visual
• comfort.
• Utilizes edge-lit technology, provides full diffusion with excellent uniformity.
• 120° beam angle provides high vertical illumination.
• Minimum CRI of 80.

Electrical Specifications:

• Wattage: 50 Watts
• Lumens: 3000 Lumens
• Voltage: UE - Universal Voltage (120-277V)
• Driver: DIM - Dims to 10% (0-10v dimming)
• Color Temperature: 35 - 3500K

Electrical Details:

• High-performance driver features over-voltage, under voltage, short-circuit and over temperature protection.
• 0-10 volt dimming (10% - 100%) standard.
• Standard Universal Voltage (120-277 Vac) Input 50/60 Hz.
• L70 Calculated Life: >50k Hours
• Total harmonic distortion: <20%
• Operating temperature: -25°C to +45°C (-13°F to +113°F)
• Power factor: >.90
• Input power stays constant over life.

Construction Features:

• Rigid frame is die-formed code gauge steel and aluminum for consistency and strength.
• Mounting pan comes equipped with integral NEC compliant earthquake clips.
• Ultra-slim < 2” luminaire height and lightweight design effectively target a broad range of plenum/wall spaces and allow for easy installations.
• Luminaire is painted after fabrication following treatment with phosphate
• rust inhibitor. Finish coating of housing reflecting surfaces is with high reflectance
• white (minimum 92%) polyester powder.

Installation:

• Luminaire installs by lifting it through grid ceiling and resting it on the
• T-bars.
• Luminaire installs onto standard 15/16” and narrow 9/16” T-grid ceiling
• systems.

Listing:

• Listed to UL 1598 and UL 8750.
• RoHS Compliant
• Lighting Facts Approved
• Suitable For Damp Locations
• IC Rated
