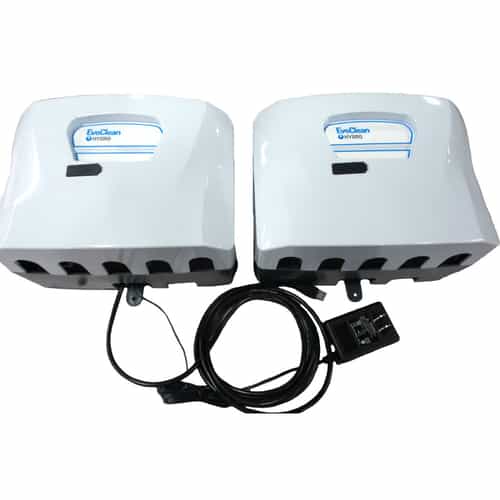

Eight Product EvoClean

The Hydro Systems E128L35GTEM EvoClean is a venturi-based, water-powered chemical dispenser for up to eight laundry products. This low flow dispenser is operated with a Total Eclipse controller (included), has an integrated flush manifold, and includes a machine interface.
This EvoClean covers a full range of product configurations and washer sizes. Convenient unit for OPL accounts - eliminates maintenance (no squeeze tubes), reduces installation time, and improves dispensing precision.

Specifications:

• 3/8" hose barb check valve
• 1/2" outlet port
• Garden hose inlet
• 8 product version
• Designed for low flow rate
• Electrical: 110V to 240V AC at 50-60 Hz up to 8 amps
• Minimum Water Pressure Rating: 25 PSI
• Maximum Water Pressure Rating: 90 PSI
• Inlet Temperature Range: 40 Degrees to 140 Degrees Fahrenheit
• Chemical Temperature Rating: Intake chemicals should be room temperature
• Cabinet Material: Front: ASA, Rear: PP-TF

Features & Advantages:

• Easy to Handle - EvoClean is 50% lighter than other traditional peristaltic pumps and takes up less space in the laundry facility.
• Water and Energy Savings - EvoClean uses less water due to the eductor that restricts flow to 0.5 GPM or 1.0 GPM, depending on the model.  It also uses less energy since it does not use AC or DC motors.
• Compatibility - The EvoClean is fully compatible with the Total Eclipse controller and can be retrofit to existing Total Eclipse controllers by flashing new firmware onto legacy controllers.
• Flexible, Safe and Easy to Use - The Total Eclipse Controller has a 20-formula capacity and features Auto Formula Select. A large LCD display features formula names, as well as trigger and pump diagnostics. Low voltage "plug-and-play" connections result in a quick installation.
• Premium Reporting Capabilities - Summary reports on product usage, costs per formula, system settings and diagnostics - in addition to an activity log - are easily downloaded to the USB flash drive and viewed or imported.  Data reports in HTML format can be read directly into Excel spreadsheets.
• Security - All programming is protected by your own chosen passcode.
