LIGX1211

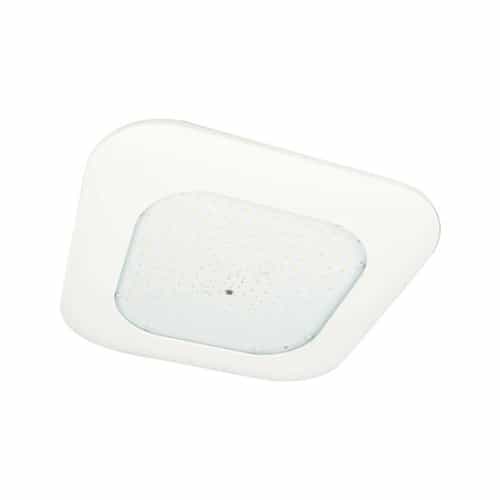

LSI Industries 6304482R2 Scottsdale Legacy CRUS light fixtures are the perfect canopy light solution for car washes, convenience stores, gas stations, and more! This subtle but sophisticated fixture has a white finish and a low profile that elegantly fits into any environment. The CRUS DDM fixture is designed for use in double deck gas canopy installations that are water tight.

This low profile CRUS light fixture is capable of being retrofitted to a variety of older arrangements including LSI, Whiteway, and Jet-Philips, and is also built to accommodate future additions of wireless controls, sensors, and other hardware.

Features:

• Best-in-class energy efficiency
• Virtually maintenance free
• Innovative retrofit options to replace outdated fixtures
• Smart styling complements facility
• Made in the U.S.A.
• Manufacturer long part #: CRUS SM SC LED HO 50 UE WHT

Construction Details:

• Rugged low-profile die-cast aluminum housing, optical unit, and driver cover
• Ultra-slim 11/16" luminaire height and lightweight design effectively target a broad range of applications and allow for easy installations
• Below canopy access to optical chamber and driver housing for serviceability
• IP65 rated optical unit protects integral components from low pressure water jets from any direction
• Luminaire is proudly manufactured in the U.S. of U.S. and imported parts
• Fixtures are finished with LSI's DuraGrip¨ polyester powder coat finishing process
• The DuraGrip finish withstands extreme weather changes without cracking or peeling

Optical Details:

• Proprietary silicone refractor optics provide exceptional coverage and uniformity
• Standard symmetric distribution
• 5000K color temperature
• State-of-the-art silicone optics deliver industry leading optical control with an integrated gasket
• Silicone optical material does not yellow or crack with age and provides a minimum light transmittance of 93%

Electrical Details:

• 125 Watts
• 18000 Lumens
• High-performance driver features over-voltage, under-voltage, short-circuit and over temperature protection
• Standard Universal Voltage - 120-277VAC
• L80 Calculated Life: over 100k hours
• Operating Temperature: -40° Fahrenheit to 131° Fahrenheit

Certifications and Listings:

• UL and ETL listed to UL 1598 and UL 8750
• Meets Buy American Act requirements
• Lighting Facts Approved
• IP65 Rated Optical Unit

Applications:

• Car Washes
• Gas Stations
• Convenience Stores
• Quick Serve Restaurants
