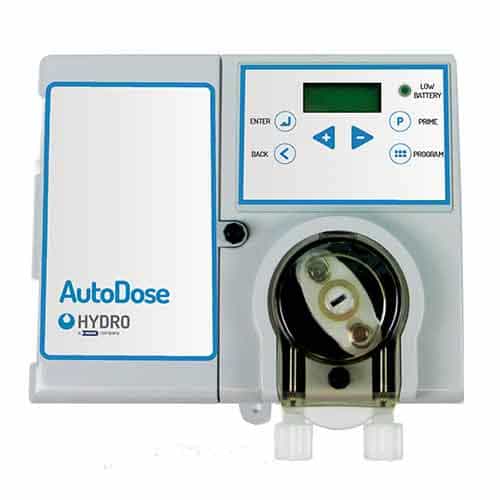

Hydro Systems 1180 Square Wall Mounted AutoDose - Battery Operated

Brand:
Mfr. Model #:
HYD1180
KR Part #:
IN1180
Weight:
3.40 lbs
In Stock
MSRP
$368.64
Now Only!
$249.76
Compact automated dosing system with customizable programming. Runs by battery and mounts on walls. Designed for: drain cleaning, cooling towers, boilers, pools, lubrication systems, other systems that require regular dosing of chemicals for maintenance.



Product Description

Battery Powered Dosing System - Square Wall Mount

The Hydro Systems 1180 AutoDose is an automated dosing system with customizable programming. Compact design and battery powered operation make it perfect for drain cleaning, cooling towers, boilers, lubrication systems, pools, and other areas that need regular frequent dosing of maintenance chemicals to keep them clean. Flexible automated dosing means little day-to-day effort and the elimination of human error in dosing amounts. Boasts a design specifically intended to extend the lifespan of batteries, tubes, and motors.

This version of the Hydro Systems AutoDose is designed to be mounted on a wall or flat surface.

Dimensions: 4 3/4" X 6 3/4" X 8 1/3"

Specifications:

  • Battery powered - Requires 8 "D" alkaline batteries that provide up to 40 hours of pumping
  • Square shape
  • Wall mount included
  • Flow Rate: Approximately 3.5 ounces per minute
  • Inlet Vacuum: 20+ in Hg
  • Outlet Pressure: 20 PSI
  • EPDM tubes
  • Polypropylene and ABS cabinet

Features and Benefits:

  • Maximum flexibility for customized dosing
  • Choice of days, time (AM or PM) and dosings (in one ouce or 30 ml increments)
  • Up to 24 dosing periods per 24 hours
  • Capability to dose every day, or just on specific days
  • Corrosion-resistant cabinet fitted to pail or wall for demanding environments
  • Easy to program timer with pin lockout for security
  • During normal operation, the timer runs on the same power source as the pump, simplifying system maintenance (only one set of batteries to replace)
  • Internal backup battery in timer maintains program even when main power source is disconnected or inoperative
  • Automatic battery-life monitoring technology ensures dosing accuracy throughout life of battery
  • No tools required for maintenance of pump assembly
  • Low battery indicator

Ideal Applications:

  • Drains
  • Cooling towers
  • Boilers
  • Pools
  • Lubrication systems
