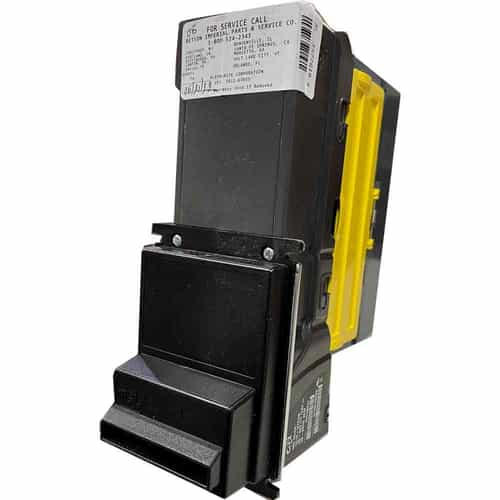

CPI T612-U7E Talos Bill Validator - Upstack, Pulse 9 Pin Harness, 24 VAC, Accepts $1-$20, 700 Bill Capacity

Mfr. Model #:
KR Part #:
3.20 lbs
Out of Stock - Pre-Order Now
Now Only!
The Talos Validator replaces Series 2000 Validators. Used in car wash applications. Compatible with 24 VAC connections.

Technical Specifications

Voltage AC: 24

Product Description

24-Volt Upstack Bill Validator

CPI's Talos Validator T612-U7E is a drop-in replacement for the Series 2000 AE2612-U7E bill validator. Features a modernized Light Bar Sensor that scans inserted bills with 6 wavelengths of light covering 99% of the banknotes surface enhancing accuracy ten-fold. Upstack bill magazine holds a maximum of 700 bills. This validator is compatible with 24 VAC electrical connections and accepts $1-$20 bills.


  • Talos Model: T612-U7E
  • Market Application: Car Wash, Amusement
  • Accepts: $1 - $20 Bills
  • Bezel: Up/Down Style
  • Voltage: 24 VAC
  • Orientation: Upstack
  • Magazine Capacity: 700
  • Harness: Pulse 9 Pin


  • Secures banknotes in speeds under 2.5 seconds
  • Light Bar recognition system delivers best in class fraud detection
  • Firmware updates via USB, increases update speed ten-fold
  • Addresses new advances in banknote security
  • Encrypted, secure, seamless updates
  • 32-bit microprocessor with processing power to support enhanced features
  • Enhanced security modes provide additional theft protection, early detection, and alarm triggering
  • External error code access
  • Replaces 2000 Series Bill Validator: AE2612-U7E

Light Bar Sensor:

  • Scans full width of the bill to authenticate it (99% of the surface area). Sensor utilizes 6 wavelengths of
  • light enabling it to capture modern and next generation banknote security features. Offers 10x the fraud
  • protection compared to the Pellet Sensors used in the 2000 Series Validators.

Changes From 2000 Series:

  • Light Bar recognition replaces Pellet Sensors
  • No more dip switches
  • Denomination acceptance programming with banknote or coupon
  • Increased banknote transport speed
  • New bezel designs - VFM "S" & Compact "T" applications
  • Single high security mode
  • USB supported updates

Similarities With 2000 Series:

  • All bezel design types are compatible, including cashless
  • Retro bill magazine compatibility
  • Reliable banknote transport and stacking mechanism performance
  • Supports all OEM communication protocols and interface types
  • Drop-in replacement for 2000 Series units
  • Programming push button found behind the bill magazine
