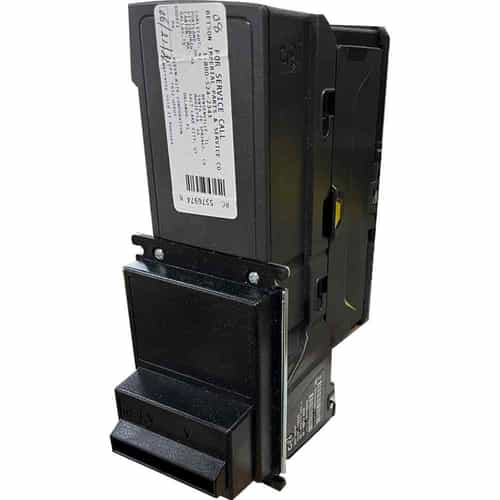

CPI T612-U5E Talos Bill Validator - Upstack, Pulse 9 Pin Harness, 24 VAC, Accepts $1-$20, 500 Bill Capacity
Brand:
Mfr. Model #:
253100252P1
KR Part #:
T612-U5E
Weight:
3.20 lbs
The Talos Validator replaces Series 2000 Validators. Used in car wash applications. Compatible with 24 VAC connections.
Technical Specifications
Voltage AC: 24
Product Description
24-Volt Upstack Bill Validator
CPI's Talos Validator T612-U5E is a drop-in replacement for the Series 2000 AE2612-U5E bill validator. Features a modernized Light Bar Sensor that scans inserted bills with 6 wavelengths of light covering 99% of the banknotes surface enhancing accuracy ten-fold. Upstack bill magazine holds a maximum of 500 bills. This validator is compatible with 24 VAC electrical connections and accepts $1-$20 bills.
Specifications:
- Talos Model: T612-U5E
- Market Application: Car Wash, Amusement
- Accepts: $1 - $20 Bills
- Bezel: Up/Down Style
- Voltage: 24 VAC
- Orientation: Upstack
- Magazine Capacity: 500
- Harness: Pulse 9 Pin
Features:
- Secures banknotes in speeds under 2.5 seconds
- Light Bar recognition system delivers best in class fraud detection
- Firmware updates via USB, increases update speed ten-fold
- Addresses new advances in banknote security
- Encrypted, secure, seamless updates
- 32-bit microprocessor with processing power to support enhanced features
- Enhanced security modes provide additional theft protection, early detection, and alarm triggering
- External error code access
- Replaces 2000 Series Bill Validator: AE2612-U5E
Light Bar Sensor:
- Scans full width of the bill to authenticate it (99% of the surface area). Sensor utilizes 6 wavelengths of
- light enabling it to capture modern and next generation banknote security features. Offers 10x the fraud
- protection compared to the Pellet Sensors used in the 2000 Series Validators.
Changes From 2000 Series:
- Light Bar recognition replaces Pellet Sensors
- No more dip switches
- Denomination acceptance programming with banknote or coupon
- Increased banknote transport speed
- New bezel designs - VFM "S" & Compact "T" applications
- Single high security mode
- USB supported updates
Similarities With 2000 Series:
- All bezel design types are compatible, including cashless
- Retro bill magazine compatibility
- Reliable banknote transport and stacking mechanism performance
- Supports all OEM communication protocols and interface types
- Drop-in replacement for 2000 Series units
- Programming push button found behind the bill magazine
Product Reviews
Frequently Asked Questions
Question:Is bezel face as same as last ones, too? I mean switch with mei previous models.
-
Ki Tae
(09/13/2023)
Response:Hello, the bill magazine, interface harness and bezel are all the same as the 2000 series and are interchangeable. You can see this and other specs you may need in the data sheet under manuals (right side of the page).
Question:Is magazine interchangeable with previous mei models?
-
Ki Tae
(09/13/2023)
Response:Hello, the bill magazine, interface harness and bezel are all the same as the 2000 series and are interchangeable. You can see this and other specs you may need in the data sheet under manuals (right side of the page).
