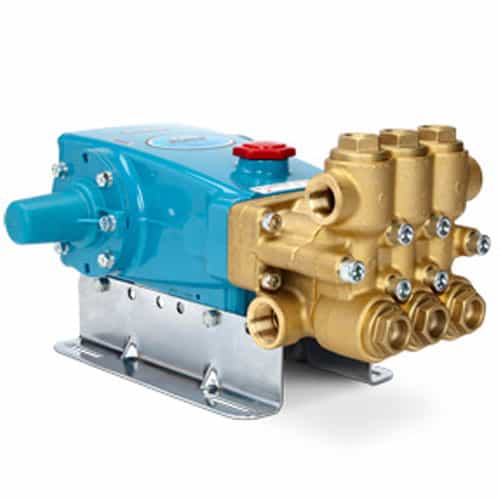

CAT Pumps 1730 Brass 15 Frame Triplex Plunger Pump - 1500 PSI, 15.8 GPM, 1750 RPM

Brand:
Mfr. Model #:
1730
KR Part #:
PU1730
Weight:
58.00 lbs
Usually Ships in 2 Weeks
MSRP
$4,905.00
Now Only!
$2,511.36
This triplex plunger pump excels when used in multi-gun, multi-nozzle, and high-pressure systems. Handles a maximum pressure of 1500 PSI. Delivers a maximum flow rate of 15.8 GPM.



Technical Specifications

Max GPM: 15.8
Max PSI: 1500
RPM: 1750
Min PSI: 100
Outlet Port: 3/4 inch
Inlet Port: 1 inch
Max Temperature: 140 degrees F
Bore: 25 millimeter
Stroke: 25 millimeter
Crankcase Capacity: 42 ounce
Shaft Diameter: 1.18 inch

Product Description

15 Frame Pump

The CAT Pumps model 1730 is a 15 frame triplex plunger pump built to deliver highly efficient operation and lower pulsation levels. Ceramic plungers provide a true wear surface and extended seal life. This pump is compatible with belt, clutch, flexible couplings and bellhousing drive types. Constructed with a forged brass manifold, 304 stainless steel valve assemblies and equipped with NBR seals and O-Rings.

Specifications:

  • Max Flow: 15.8 GPM / 59.8 LPM
  • Pressure Range: 100 - 1500 PSI
  • Inlet Port Size (2): 1" NPT(F)
  • Discharge Port Size (2): 3/4" NPT(F)
  • RPM: 1750
  • Drive Type(s): Belt, Clutch, Flexible Coupling and Bellhousing
  • Material: Brass
  • Inlet Pressure Range: Flooded to 70 PSI
  • Max. Liquid Temp. (NBR): 140°F
  • Bore 0.984"
  • Stroke 0.984"
  • Crankcase Capacity 42 oz.
  • Pulley Mounting: Either Side
  • Shaft Diameter: 1.181"
  • Dimensions: 17.24 x 12.99 x 7.40"
  • Weight: 58 lbs.

Applications:

  • Multi-Gun Systems
  • Multi-Nozzle Systems
  • High-Pressure Systems
  • Car Wash
  • Central Cleaning System
  • Misting
  • Conveyor Belt Wash
  • High-Pressure Machine
  • Tool Coolant
  • Tank Cleaning
  • Equipment Wash-Down
