115 Volt Electric Chemical Dispensing System - Single Cable

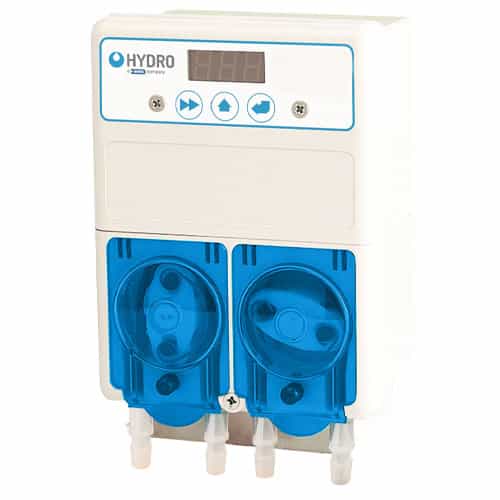

The Hydro Systems 00-08511-420 Sprite Dispenser is a two-product dispensing system for laundry and warewashing. The Sprite TL-400 has four different programmable formulas so adjustments can be made for varying soil loads. Select from three modes of operation: Automatic, Sequence/Occurrence, or Push Button Mode. Promotes safe and economical chemical usage by adding an incredibly accurate amount of chemical product to every load. This version of the TL-400 is powered by 115V electric delivered by a single cable.

Specifications:

• 115VAC power requirement (single cable)

• Used with two liquid products

• Ideal for laundry and warewashing applications

• Top loading

Features:

• Three modes of operation

• Stopwatch style programming

• Spring loaded spinners

• Built-in load counter

• Pre-wired

• Quick change squeeze tubes & captive thumb screws on pump covers

• Password protected

Pump Information:

• Output: 6 ounces per minute

• Pump Tube Material: EPDM

• Pump Spinner: Spring loaded, dual roller
