General Pumps T9051EBFUIL Plunger Pump with Unloader and Injector, Left Shaft, 2.11 GPM, 1500 PSI

Mfr. Model #:
KR Part #:
16.00 lbs
Call For Availability
Now Only!

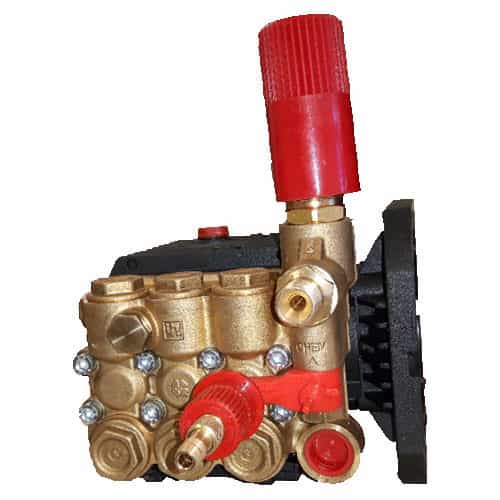

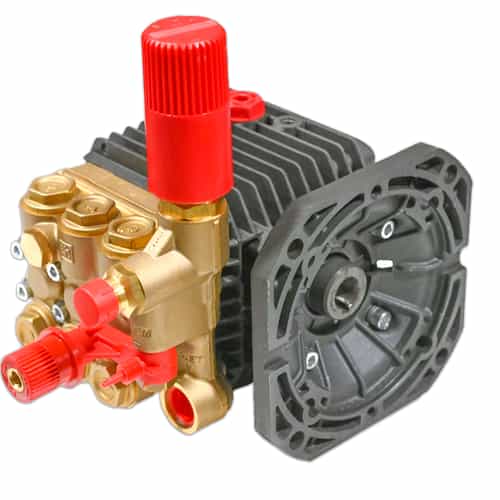

Flanged plunger pump with brass manifold, aluminum crankcase, and three solid ceramic plungers. Includes a chemical injector and pressure unloader. 1500 PSI, 2.11 GPM, 1750 RPM. NOTE: This is a LEFT SHAFT pump - right side shaft pump shown in picture, this pump is identical but with shaft on opposite side.

Technical Specifications

Max GPM: 2.11
Max PSI: 1500
Max Temperature: 165 degrees F
RPM: 1750
Inlet Port: 3/8 inch
Outlet Port: 1/4 inch
Bore: 15 millimeter
Stroke: 9.4 millimeter
Shaft Diameter: 16 millimeter

Product Description

Left Shaft Pump with Electric Engine Flange, Injector, Unloader

The General Pump T9051EBFUI Pump is a triplex plunger pump that includes a flange for electric NEMA 56C motors with a maximum speed of 1750 RPM. Has a maximum flow rate of 2.11 GPM and a maximum pressure of 1500 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!

This model includes a chemical injector so you can use soaps and detergents with the pump and an unloader to maintain consistent pressure.

Dimensions: 7.2" x 7.2" x 5.5"


  • Forged brass manifold with exclusive lifetime warranty
  • Die-cast annodized aluminum, oil-bath crankcase
  • Solid ceramic plungers with continuously lubricated packings
  • The original Interpump unitized, stainless steel, K01 inlet and outlet valves
  • Ideal for all general cleaning applications
  • Comes standard with NEMA 56C electric motor mounting flange
  • Includes a pressure unloader and chemical injector
  • Left side shaft for alternate mounting needs


  • Maximum Flow: 2.11 GPM
  • Maximum Pressure: 1500 PSI
  • Maximum RPM: 1750 RPM
  • Shaft: 5/8" hollow
  • 11.2 ounce crankcase capacity
  • Inlet Port: 3/8"
  • Outlet Port: 1/4"
  • Bore: 9.4 mm
  • Stroke: 15 mm
  • 165° degrees Fahrenheit maximum temperature
  • Left shaft
  • Weight: 12 lbs.
