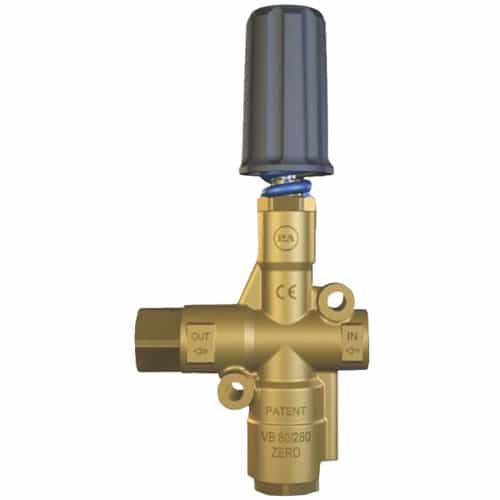

General Pump PLSRZ2140 Flow Sensitive Unloader Valve - 4050 PSI, 5.3-21 GPM, 1/2 BSP-F
Brand:
Mfr. Model #:
PLSRZ2140
KR Part #:
GPUZ2140
Weight:
3.80 lbs
GTIN:
682491043232
Availability:
2
Flow-sensitive unloader valve with a brass housing and adjustable knob. Maintains consistent pressure levels that make spray gun usage easier and safer while not releasing too much pressure. 4050 max PSI, 5.3-21 GPM flow rate, 1/2" BSP-F ports.
Technical Specifications
Max PSI: 4050
Max GPM: 21
Min PSI: 580
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Product Description
Brass Housing Unloader Valve
The General Pump PLSRZ2140 Unloader Valve is a helpful accessory that makes spray gun operation easier and safer. It boasts reduced pressure loss over other unloader valves while being extremely reliable and easy to maintain.
General Pump recommends using a safety relief device in conjunction with this unloader valve when installed on a positive displacement pump. General Pump is not liable and assumes no responsibility when used in a customer's high pressure system.
Dimensions: 9 .35" x 4 .42" x 2"
Specifications:
- Maximum Volume: 5.3 to 21 GPM
- Maximum Pressure: 4050 PSI
- Minimum Pressure: 580 PSI
- Maximum Temperature: 140° Fahrenheit
- Inlet Port: 1/2" BSP-F
- Outlet Port: 1/2" BSP-F
- Bypass: 1/2" BSP-F
- Weight: 3.8 lbs.
Features:
- Near total zero setting of the outlet pressure at gun closure increases safety
- Reduced pressure loss
- Makes for easier gun operation
- Extremely reliable
- Easy maintenance
UPC:
- 682491043232
